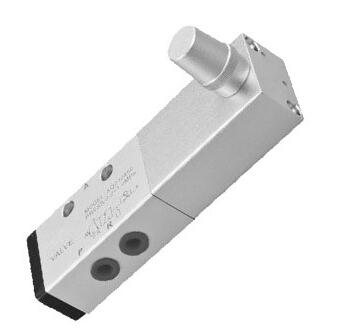

XQ series pneumatic delay directional valve

ENGELEC XQ series pneumatic delay directional valve
  • XQ
  • ENGELEC
Availability:

ENGELEC XQ series pneumatic delay directional valve


Model: XQ230450

Working media: Air

Positional: 3/2 port

Port size: G1/8

Port size: 6mm

Timing range: 1~30S

Max working pressure:0.2-1Mpa

Delay error: 8%

Switching period: 30ms

Medium temperature: -10~+60℃

Ambient Temperature: 5-60℃

Mechanical life: 5,000,000 times
