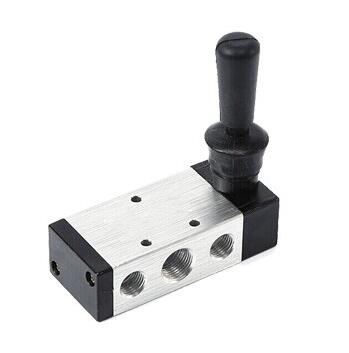

3H 4H series pneumatic hand valve

ENGELEC 3H 4H pneumatic hand valve
  • 3H 4H

  • ENGELEC

Availability:

ENGELEC 3H 4H pneumatic hand valve


Ordering model

3H/4H-2/10/
3H:2/3
SeriesPosition codeConnect tube size
3 way 2 positions01:100 series10: Single/Double position06:1/8”
4H:2/5
02:200 series
08:1/4”
5 way 2 positions03:300 series10:3/”


04:400 series15:1/2”

Specifications

Model3H210-08    4H210-083H310-10   4H310-103H410-15       4H410-15
Working mediumAir
Action modelDirect action
Effective cross-section area(mm2)16(CV=0.89)25(CV=1.4)30(CV=1.6)
Connect tube size1/4"3/8"1/2"
Working pressure range0~8.0kgf/cm2
Working temperature range5~60℃
LubricatingNo need
Operate rocking angle±15
Main parts materialBodyAluminum alloy
Sealing ringNBR
