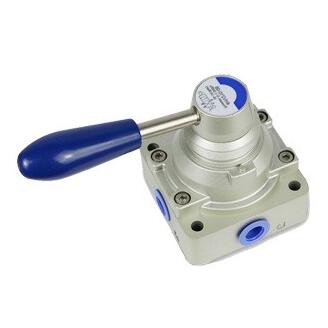

4HV pneumatic hand valve

ENGELEC 4HV pneumatic hand
  • 4HV

  • ENGELEC

Availability:

ENGELEC 4HV pneumatic hand valve

Ordering code

4HV/2/30/60S
Main code
Series
Position
Connect   tube sizeInstallation   type


2:   2 series
10:   4 way 2 positions
06:1/8"Blank:


3:   3 series
30:   4 way 2 positions
08:1/4"Valve   body installation


4:   4 series


10:3/8”S:   Panel mounting






15:1/2”






20:3/4”

Specifications

Model4HV2-064HV2-084HV3-084HV3-104HV4-154HV4-20
Working   mediumAir
Positions4   way 3 positions / 4 way 2 positions
Connect   tube size1/8"1/4"1/4"3/8"1/2"3/4"
Effective   cross-section area(mm2)14(0.78)16(0.89)30(1.67)33(1.83)88(4.89)95(5.27)
Working   pressure range0~10kgf/cm2
Guarantee   pressure esistance15kgt/cm2
Working   temperature range0~60℃
Operate   rocking angle90℃
Main   parts materialBodyAluminum   alloy
Sealing ringNBR
