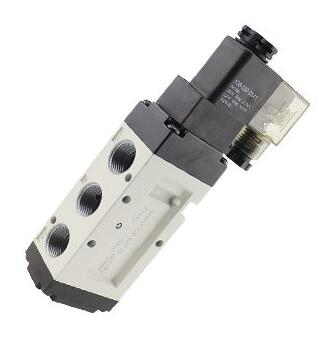

VF5000 series solenoid valve pneumatic

ENGELEC VF5000 series solenoid valve
  • VF5000

  • ENGELEC

Availability:

ENGELEC VF5000 series solenoid valve


Model: VF5120-03, VF5220-03, VF5320-03, VF5420-03, VF5520-03

120: single coil double position

220: double coil double position

3: AC110V

4: AC220V

5: DC24V

6: DC12V

G: wiring type

D: plug type

Media: Air

Action mode: internal pilot type

Effective sectional area: 18mm2(Cv=1), 25mm2(Cv=1.4)

Port size: input=output=exhaust port=PT3/8

Working pressure: 0.15 -0.8Mpa

Proof pressure: 1Mpa

Working temperature: 0~60℃

Voltage range: +/-10%

Power consumption: AC 5.5VA, DC 4.8W

Insulation level: F

Protection level with protective sleeve: IP65

Max operating frequency: 5 cycle per second

Min excitation time: 0.05 second

Working voltage: DC12V, DC24V, AC110V, AC220V
