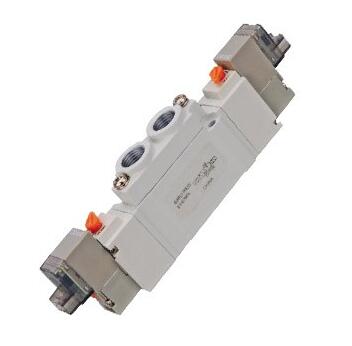

SZ series pilot solenoid valve pneumatic

ENGELEC SZ series pilot solenoid valve pneumatic
  • SZ

  • ENGELEC

Availability:

ENGELEC SZ series pilot solenoid valve pneumatic


Model: SZ3000, SZ5000, SZ7000, SZ9000

Working media: Air

Internal pilot two position single type working pressure range MPa: 0.15-0.7

Internal pilot two position double type working pressure range MPa: 0.1-0.7

Internal pilot three position single type working pressure range MPa: 0.2-0.7

Temperature: -10~50℃(No Frozen)

Two position single/double type max operating frequency Hz: 5, 10

Three position type max operating frequency Hz: 3

Two position single type response time(ms): ≤12, ≤19, ≤31, ≤35

Three position response time(ms): ≤15, ≤32, ≤50, ≤62

Exhaust mode: main valve and pilot valve exhaust type

Impact resistance / Vibration resistance value m/s2: 150/30
