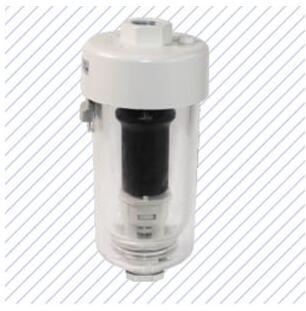

SMC type AD402-A pneumatic auto drain

ENGELEC SMC type AD402-A pneumatic auto drain
  • AD402



ENGELEC SMC type AD402-A pneumatic auto drain

Ordering   code
AD402-A -
04 C

Series No.
Thread type Thread size interface Drainage mode Cup type Accessories

Blank:RC 03 C:N.C. Blank:Transparent cup Blank:without   fittings

N:NPT 04 D:N.O. Polycarbonate cup V:with exhaust valve


2:Metal cup

6:Nylon cup
Common   specifications
Model AD402-A
Auto drain way Float-type
Auto drain   valve type N.C.(Normally   closed)
   N.O.(Normally open)
Working medium Compressed air
Environmetal   temperature and working fluid temperature -5~60℃(not frozen)
Ensure   pressure resistance 1.5Mpa
Max working   pressure 1.0Mpa
working   pressure range N.C.:0.15~1.0Mpa
Connection   port size 1/4,3/8,1/2
Condensate   exhaust port size 3/8
Material of   cup Polycarbonate
Material of   cup cover Polycarbonate
Weight 0.46kg
Color of   appearance Silver white
