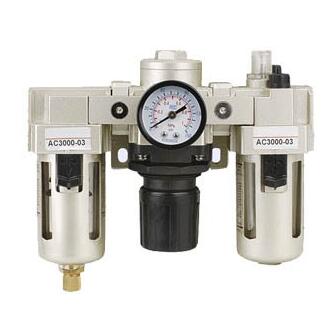

AC series relief type FRL regulator valve units

ENGELEC AC series relief type FRL regulator valve units
  • AC series

  • ENGELEC

Availability:

ENGELEC AC series relief type FRL regulator valve units


ModelAC1000-M5AC2000-01AC2000-02AC2500-02AC2500-03AC3000-02AC3000-03
ModuleFilterAF1000AF2000AF2000AF2500AF2500AF3000AF3000
RegulatorAR1000AR2000AR2000AR2500AR2500AR3000AR3000
LubricatorAL1000AL2000AL2000AL2500AL2500AL3000AL3000
Port SizeM5×0.8PT1/8PT1/4PT1/4PT3/8PT1/4PT3/8
Pressure Gauge Port SizeM5×0.8PT1/8PT1/8PT1/8PT1/8PT1/8PT1/8
Rated Flow(L/Min)905005001500150020002000
Working MediaCompressed Air
Proof Pressure1.5Mpa
Range of Regulation0.05~0.7Mpa0.05~0.85Mpa
Ambient Temperature5~60℃
Filter Precision40 μ m(Normal)or 5 μ m(Customized)
Suggested Lubricating OilTurbine NO.1 Oil(ISO VG32)
Bracket(two)Y10LY20LY30L
Pressure GaugeY25-M5Y40-01
MaterialBody MaterialAluminum Alloy
Cup MaterialPC
Cup CoverAC1000~AC2000:without     AC2500~AC5000:with(Iron)
ModelAC4000-03AC4000-04AC4000-06AC5000-06AC5000-10
ModuleFilter RegulatorAF4000AF4000AF4000AF5000AF5000
RegulatorAR4000AR4000AR4000AR5000AR5000
LubricatorAL4000AL4000AL4000AL5000AL5000
Port SizePT3/8PT1/2G3/4G3/4G1
Pressure Gauge Port SizePT1/4PT1/4PT1/4PT1/4PT1/4
Rated Flow(L/Min)40004000450050005000
Working MediaCompressed Air
Proof Pressure1.5Mpa
Range of Regulation0.05~0.85Mpa
Ambient Temperature5~60℃
Filter Precision40 μ m(Normal)or 5 μ m(Customized)
Suggested Lubricating OilTurbine NO.1 Oil(ISO VG32)
Bracket(one)Y40LY50LY60L
Pressure GaugeY50-02
MaterialBody MaterialAluminum Alloy
Cup MaterialPC
Cup CoverAC1000~AC2000:without     AC2500~AC5000:with(Iron)
