3A series air control pulse valve pneumatic

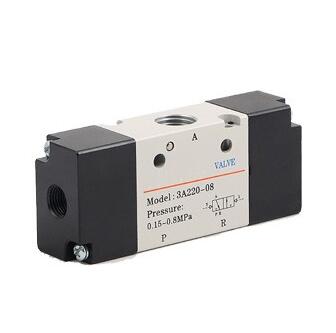

ENGELEC 3A series air control pulse valve pneumatic
  • 3A

  • ENGELEC

Availability:

ENGELEC 3A series air control pulse valve pneumatic


Model: 3A110, 3A120, 3A210, 3A220, 3A310, 3A320

Media: Air

Action mode: Exterior control

Position: 3/2 port

Working pressure: 0.15-0.8Mpa

Proof pressure: 1Mpa

Working temperature: 0-60℃

Max operating frequency: 5 cycle per second

Effective sectional area: 5.5mm2(Cv=0.31), 12.0 mm2(Cv=0.67), 14.0 mm2(Cv=0.78), 16 mm2(Cv=0.89), 25 mm2(Cv=1.39), 30 mm2(Cv=1.67)

Valve port size: input=output=M5*0.8, input=output=G1/8, input=output=G1/4, input=output=G3/8
