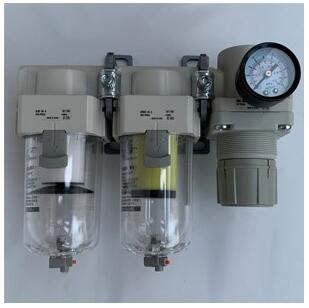

SMC type AC20C-40C-B pneumatic double filter regulator

ENGELEC SMC type AC20C-40C-B pneumatic double filter regulator
  • AC20C-40C-B

  • ENGELEC

Availability:

ENGELEC SMC type AC20C-40C-B pneumatic double filter regulator


Ordering code
AC-B - 20C
- 02
- E - X
Series No.
Shell   size Thread   type
Thread   size Drainage   pattern
Pressure   gauge specification
Cup   type Fitting   type


10C Blank:RC
01/02 Blank:Manual   drain
E:Square   embedded type pressure gauge
Default:Steel   cup S:Pressure   switch


20C N:NPT
02/03 D:N.O.Automatic   drain
G:Round   type pressure gauge
X:Transparent   cup T:T-spacer


30C F:G
03/04 C:N.C.Automatic   drain


2:Metal   cup V:Pressure   relief 3 port valve


40C






8:Metal   bowl with level gauge

Common   specification
Components AF+AFM/AFD+AR
Proof pressure 1.5Mpa(15.3kgf/C㎡)
Max.working   pressure 1.0Mpa(10.2kgf/C㎡)
Environment&fluid   temperature 5-60℃㎡
Pressure   regulating range 0.05-0.85Mpa
(AF+AFM/AFD)Filter   aperture AF:5μm,AFM/AFD:0.3μm/0.1μm,,
Outlet side   mist concentration MAX1.0mg/m3(ANR)/MAX0.1mg/m3(ANR)
Rated flow(L/min(ANR)) AC20C-B AC30C-B AC40C-B
200 450 1100
Cup   material Polycarbonate
Cup hood AC20 without   AC30-40 with bowl guard

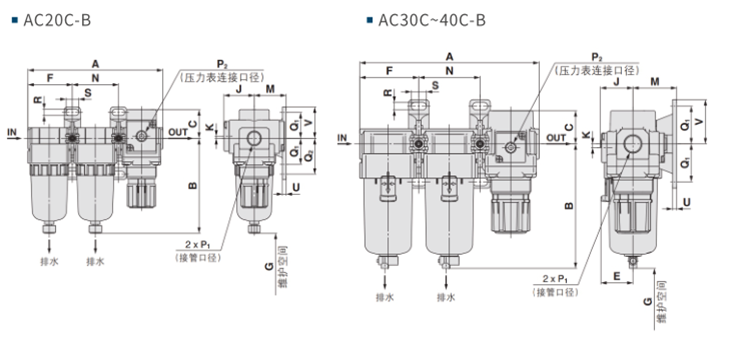

Dimension


Model Standard   size
P1 P2 A B C E F G J K Mounting Bracket size
M N Q1 Q2 R S U V
AC20C-B 1/8、1/4 1/8 126.4 87.6 26.5 - 41.6 25 28.5 2 30 43.2 24 33 5.5 12 3.5 29
AC30C-B 1/4、3/8 1/8 167.4 115.1 30.7 30 55.1 35 29.4 3.5 41 57.2 35 - 7 14 4 41
AC40C-B 1/4、3/8、1/2 1/8 220.4 147.1 35.8 38.4 72.6 40 33.8 3.5 50 75.2 40 - 9 18 5 48
Model Standard   Size
With autodrain cup Metal cup Metal bowl with level   gauge
B B B
AC20C-B 104.9 87.4 -
AC30C-B 156.8 117.6 137.6
AC40C-B 186.9 149.6 169.6
