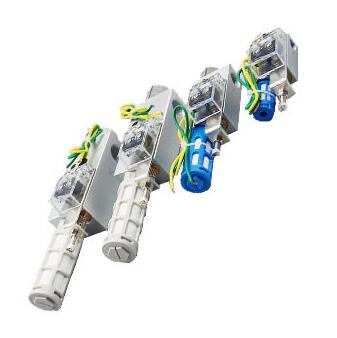

SCV CCV series vacuum generator

ENGELEC SCV CCV series vacuum generator

Model: SCV-05, SCV-10, CCV-10, SCV-15, CCV-15, SCV-20, CCV-20, SCV-25, SCV-30

SCV: standard type

CCV: pipe type

Working media: Air

Port size: G1/8, Φ6, G1/4, Φ8, G3/8, G1/2

Nozzle diameter Φ: 0.5, 1, 1.5, 2, 2.5, 3

Vacuum type: Nil standard type, LS low vacuum high flow rate type, HR low pressure high vacuum type

Working pressure: 0.2-0.8Mpa

Proof pressure: 1Mpa

Temperature range: -5~60℃

Voltage / current: AC 125, 5A / AC 250V,3A

Mass (g): 72, 136, 271, 710

Working pressure: 0.5Mpa

Air consumption L/min: 13, 44, 100, 180, 265, 385

Vacuum pressure KPa: -88

Vacuum suction volume L/min: 6, 27, 63, 110, 160, 225
