S3 series mechanical valve pneumatic

ENGELEC S3 series mechanical valve pneumatic
  • S3

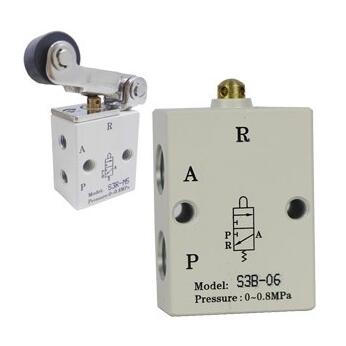

ENGELEC S3 series mechanical valve pneumatic

Model: S3B, S3PF, S3PP, S3PM, S3HS, S3HL, S3PL, S3R, S3L, S3V

Working media: Air

Action mode: direct acting type

Port size: G1/8, G1/4, M5

Temperature range: -5~60℃

Max working pressure: 0.8Mpa

Proof pressure: 1Mpa

Switch stroke range: 2.4-3.0; 2.4-3.8; 2.4-4.0

Button stroke range: 2.4-4.0; 3.8-5.4; 5.1-6.7; 5.9-7.5; 4.8-6.2; 4.5-6.0; 3.4-4.8

S3B: 3/2 port normal type

S3PF: 3/2 port flat button type

S3PP: 3/2 port raised button type

S3PM: 3/2 port mushroom type

S3HS: 3/2 port selection type

S3PL: 3/2 port stop hitting button type

S3HL: 3/2 port long handle type

S3R: 3/2 port double direction rolling wheel type

S3L: 3/2 port single direction rolling wheel type

S3V: 3/2 port single vertical hitting type
