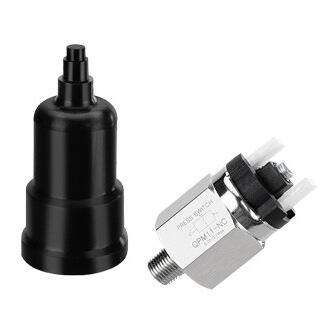

QPM QPF-1 series diaphargm type adjustable pressure switch

ENGELEC QPM QPF-1 series diaphargm type adjustable pressure switch
  • QPM QPF-1

  • ENGELEC

Availability:

ENGELEC QPM QPF-1 series diaphargm type adjustable pressure switch pneumatic


Model: QPM11-NO, QPM11-NC, QPF-1

Media: Air

Action mode: adjustable pressure type

Installation and connection mode: male thread

Port size: PT1/8

NO: normal open type

NC: normal closed ypte

Working pressure: 0.1 -1Mpa

Working temperature: -5~60℃

Service life: 1,000,000 cycles

Max current: 500mA

Max power: 100VA, 24VA

Insulation voltage: 1500V, 500V

Insulation level: F

Protection level with protective sleeve: IP54

Working voltage: DC24V
