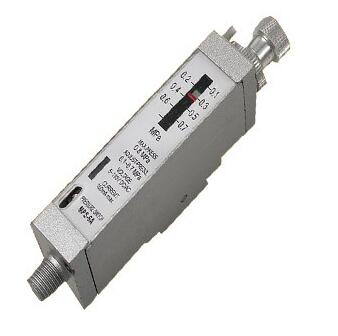

MPS-6A series pressure sensor switch pneumatic

ENGELEC MPS-6A series pressure sensor switch pneumatic pneumatic
  • MPS-6A



ENGELEC MPS-6A series pressure sensor switch pneumatic pneumatic

Connection mode: PT1/8 thread / O type seal ring for connection

Max working pressure: 0.8Mpa

Proof pressure: 1.0Mpa

Pressure setting range: 0.1~0.7Mpa

LED signal output: normal open-when pressure reaches the setting value, LED on

Sensor switch type: normal open, allowable load current 50mA, REC type spring acting type, load voltage range 5-220V DC/AC

Temperature range: -5~60℃
