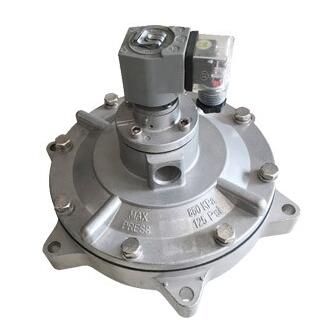

DMF-Y series Inundated electromagnetic pulse valve pneumatic

ENGELEC DMF-Y series Inundated electromagnetic pulse valve pneumatic
  • DMF-Y
  • ENGELEC
Availability:

ENGELEC DMF-Y series Inundated electromagnetic pulse valve pneumatic


Model: DMF-Y-25P, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S

Working media: Air

Port size: G1, G1-1/2, G2, G2-1/2, G2-1/4

Inside nominal diameter mm2: 25, 40, 50, 62, 76

Max working pressure: 0.3-0.8Mpa

Proof pressure: 1Mpa

Temperature: -5~60℃

Relative temperature: ≤80%

Rated voltage: AC110V, AC220V, DC24V

Membrane service life: 1,000,000 times

Coil power: 20VA
