AS series flow control valve pneumatic

ENGELEC AS series flow control valve pneumatic
  • AS

  • ENGELEC

Availability:

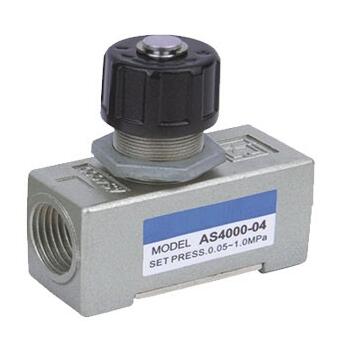

ENGELEC AS series flow control valve pneumatic


Model name: AS2000-02, AS3000-03, AS4000-04

Working media: Air

Position: 4/2 port, 4/3 port

Max working range: 0.8Mpa

Proof pressure: 1.0Mpa

Working temperature range: 0~70℃

Port size: G1/4, G3/8, G1/2

Effective sectional area mm2: 5.2, 12.3, 25.5

Free flow L/mm2 : 340, 810, 1670

Controlled flow L/mm2:250, 810, 1670
