ISOLATEURS COMPOSITES ISOLATEUR POUR MOYENNE TENSION 70KN

ISOLATEURS COMPOSITES ISOLATEUR POUR MOYENNE TENSION 70KN
  • MAX CS 70 B16 B16(S16)

  • ENGELEC

Availability:
ISOLATEURS COMPOSITES ISOLATEUR POUR HAUTE TENSION 70KN
ISOLATEURS COMPOSITES ISOLATEUR POUR HAUTE TENSION 70KN

ISOLATEURS COMPOSITES ISOLATEUR POUR MOYENNE TENSION 70KN

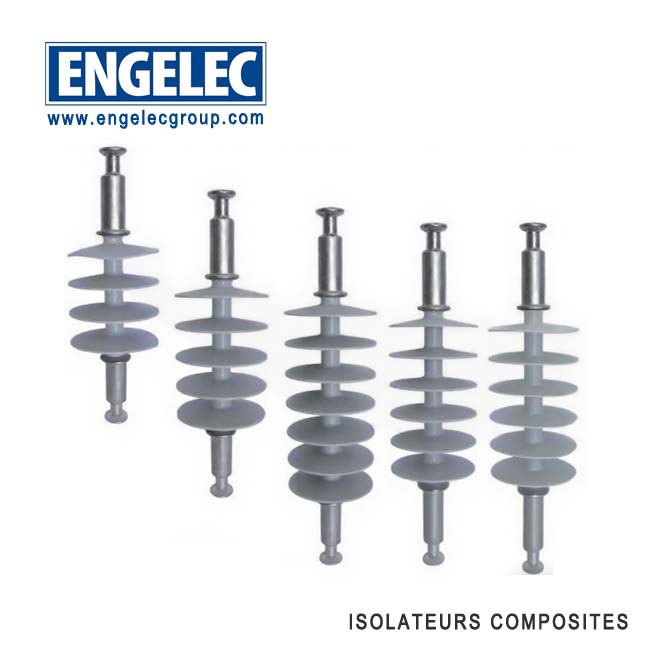

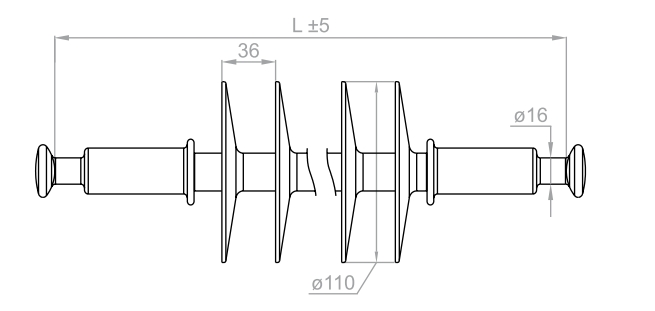

ISOLATEUR POUR MOYENNE TENSION «CLASSE 70KN BALL-BALL»

MAX CS 70 B16 B16-120/490

MAX CS 70 B16 B16-145/607

MAX CS 70 B16 B16-180/842

MAX CS 70 B16 B16-200/960

MAX CS 70 B16 B16-220/1131

1

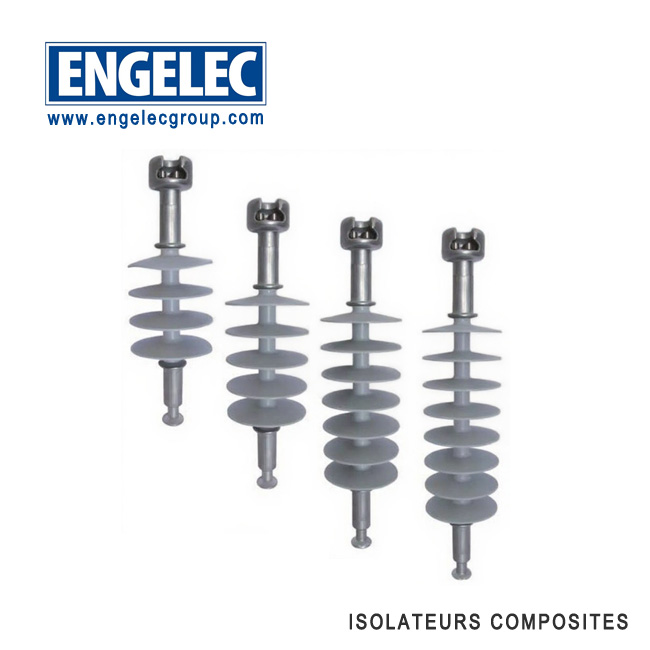

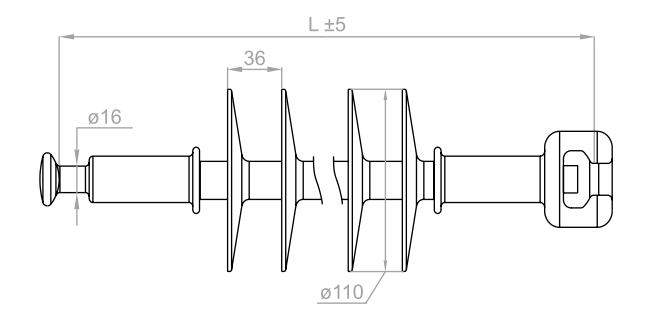

ISOLATEUR POUR MOYENNE TENSION «CLASSE 70KN BALL-SOCKET»

MAX CS 70 B16 S16-120/490

MAX CS 70 B16 S16-145/607

MAX CS 70 B16 S16-180/842

MAX CS 70 B16 S16-200/960

MAX CS 70 B16 S16-220/1131

3



2

CMS : Charge Mécanique Spécifiée.

SML : Specified Mechanical Load.

Essais effectués selon la norme IEC1109(1995).

Les dimensions des armatures sont conformes avec la norme IEC120.

Autres types d’armatures disponibles : Sur commande.
