ISOLATEURS COMPOSITES ISOLATEUR POUR MOYENNE TENSION 40KN

ISOLATEURS COMPOSITES ISOLATEUR POUR MOYENNE TENSION 40KN
  • MAX CS 40 B16 B16(S16)

  • ENGELEC

Availability:
ISOLATEURS COMPOSITES ISOLATEUR POUR HAUTE TENSION 70KN
ISOLATEURS COMPOSITES ISOLATEUR POUR HAUTE TENSION 70KN

ISOLATEURS COMPOSITES ISOLATEUR POUR MOYENNE TENSION 40KN


ISOLATEUR POUR MOYENNE TENSION «CLASSE 40KN BALL-BALL»

MAX CS 40 B11 B11-120/490

MAX CS 40 B11 B11-140/607

MAX CS 40 B11 B11-180/842

MAX CS 40 B11 B11-200/960

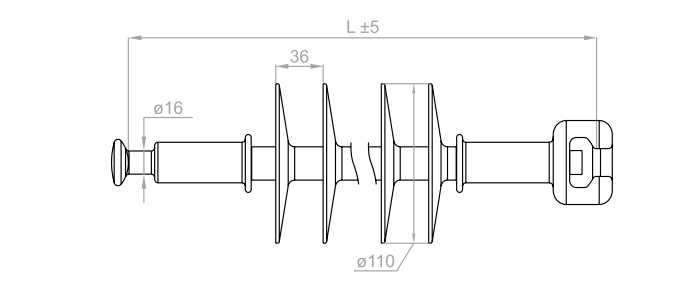

1


ISOLATEUR POUR MOYENNE TENSION «CLASSE 40KN BALL-SOCKET»

MAX CS 40 B11 S11-120/490

MAX CS 40 B11 S11-140/607

MAX CS 40 B11 S11-180/842

MAX CS 40 B11 S11-200/960

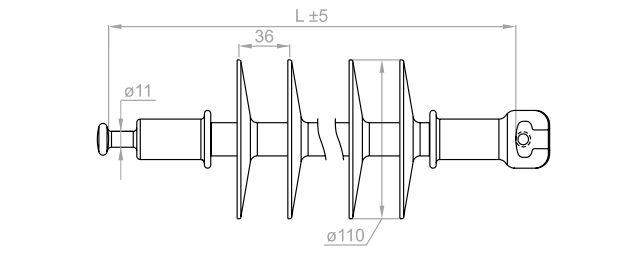

3

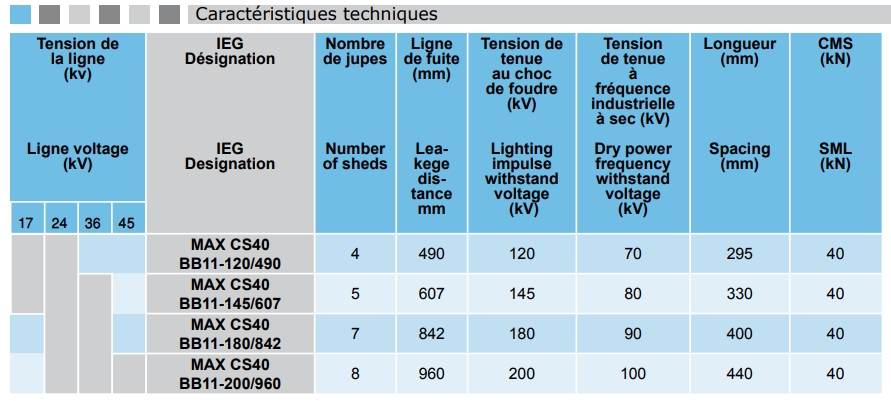

2

CMS : Charge Mécanique Spécifiée.

SML : Specified Mechanical Load.

Essais effectués selon la norme IEC1109(1995).

Les dimensions des armatures sont conformes avec la norme IEC120.

Autres types d’armatures disponibles : Sur commande.
