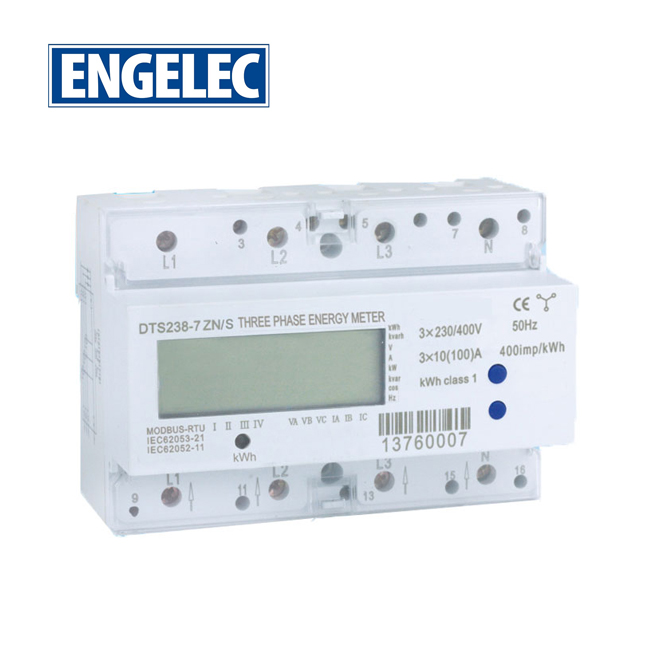

EEDTS238-7 ZN/S Three Phase Multi-function Din-rail Energy Meter with RS485 Communication 7P

The meter is used in three phase four wire/ three phase three wire/two phase three wire power grid. The meter is designed to measure AC active energy and variable parameter. All of its functions comply with the relative technical requirement for class 1 three phase watt hour meter in IEC61036 and its data communication rules obey the requirement of DL/T645 or MODBUS-RTU. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume.
  • EEDTS238-7 ZN/S

  • ENGELEC

  • EEDTS238-7 ZN/S

Size:
Availability:

EEDTS238-7 ZN/S Three Phase Multi-function Din-rail Energy Meter with RS485 Communication 7P


Generaal Description:

     The meter is used in three phase four wire/ three phase three wire/two phase three wire power grid. The meter is designed to measure AC active energy and variable parameter. All of its functions comply with the relative technical requirement for class 1 three phase watt hour meter in IEC61036 and its data communication rules obey the requirement of DL/T645 or MODBUS-RTU. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume.


Main Specification:


Type EETDS238-7 ZN/S
Rated voltage

Three phase four wire: 3*57.7/100V, 3*127/220V, 3*120/208V, 3*220/380V, 3*230/400V, 3*240/415V

Three phase three wire(two phase three wire): 3x120/208V, 2x127/220V, 3x220V, 3x380V, 3x400V, 3x415V, 3x100V

Working voltage range 0.8-1.2Un
Rated current 1.5(6)A,5(30)A,5(60A),10(40)A, 20(80)A, 20(100)A, 30(100)A. Or other as required
Frequency 50Hz/60Hz
Connection mode Direct type or with CT
Display LCD
Accuracy class Active class 1.0
Power consumption <2W/10VA
Start current 0.004lb
Constant 200-6400 iimp/kWh
Pulse output Passive pulse, pulse width is 80±5ms
Communication port RS485 port, baud rate 1200-9600bps, default is 4800bps
Exeutive standard IEC62053-21/22, DL/T645-2007 or MODUBUS-RTU
Working temperature ﹣30℃-70℃
Outline dimension 125*88*73mm(LxWxH)
Weight Approx 0.62kg



Basic Features:

  • LCD display with backlight

  • Bi-directional total active energy measurement, reverse active energy measure in the total active energy

  • The meter also display three hase real voltage , real current , real power , real power factor, real frequency

  • Pulse LED indicates working of meter, Pulse output with optical coupling isolation

  • Loss phase indication in LCD

  • RS485 communication port

  • 35mm din rail installation


Optional Functions:

  • The meter can measure and display the total forward/reverse active/reactive energy

  • Reset energy function (the reset energy kWh display is dependent with the total energy display, this reset will not affect the total energy)

  • Remote control on/off function

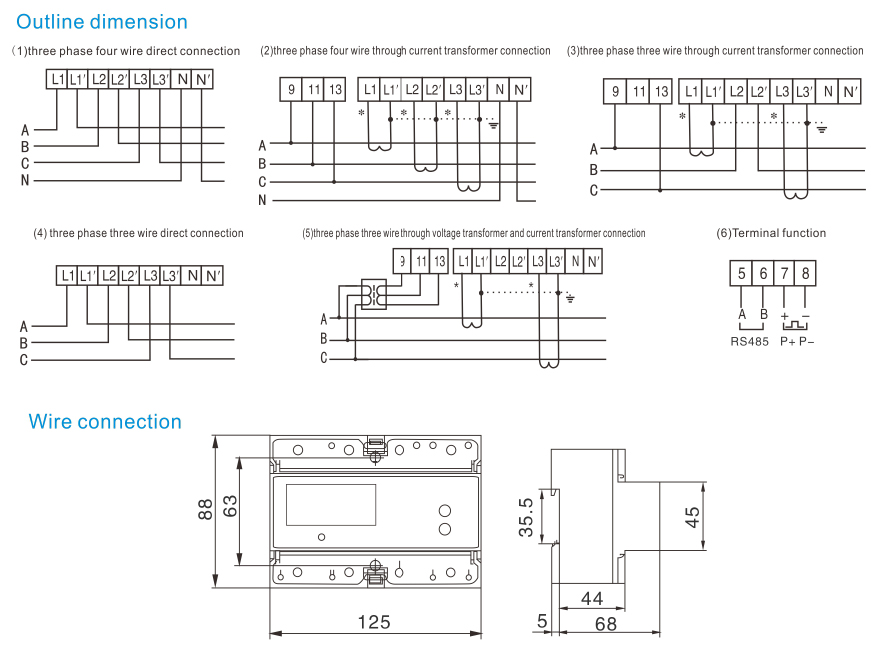

7p ZNS size
