Outdoor SWA Armoured F/UTP Cat 5E Lan Cable

The SWA armoured F/UTP cat 5e lan cable features a tough, waterproof and UV resistant PE sheath. SWA Armored Cat 5E UTP or Cat 5E FTP cable is ideal for external installations where the cable may be run through ducts or exposed outdoor.
For heavy duty applications and where enhance mechanical protection is required, we offer an SWA (Steel Wire Armoured) version with an additional PE sheath. These are extremely robust cables suitable for fixed installations and direct burial.
  • SWA F/UTP CAT5E

  • ENGELEC

  • C5EFUA

  • c5efua.pdf

Size:
Availability:

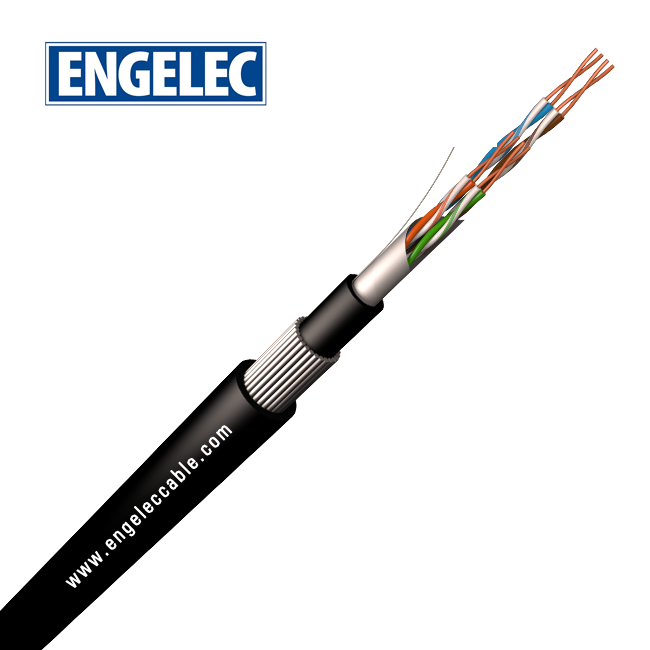

Outdoor SWA Armoured Shielded F/UTP Cat 5e Lan Cable

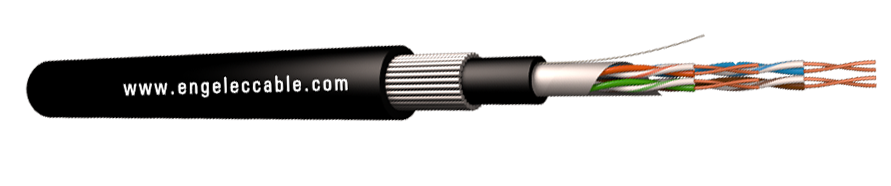

c5efua_650x650横

Applications


The SWA armoured cat5e cable features a tough, waterproof and UV resistant PE sheath. SWA Armored FTP (F/UTP) Cat 5E lan cable is ideal for external installations where the cable may be run through ducts or exposed outdoor.

For heavy duty applications and where enhance mechanical protection is required, we offer an SWA (Steel Wire Armoured) version with an additional PE sheath. These are extremely robust cables suitable for fixed installations and direct burial.

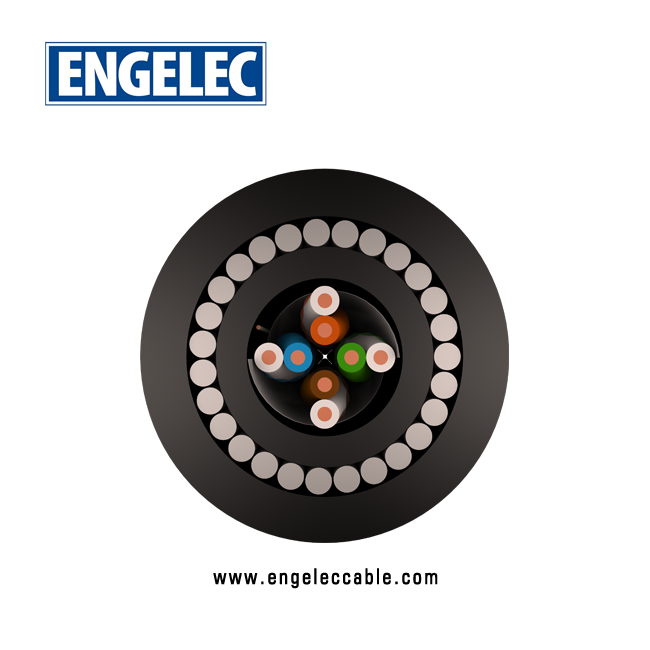

Construction


  • Solid Annealed Copper (not CCA)

  • G/SWA Galvanised Steel Wire Armoured (superior than corrugated)

  • FREE Cable cuts onto individual reels

  • High Density Polythylene (HDPE)

  • UV resistant PE/LSZH/PVC

  • Minimum Installation bend radius – 12 x diameter

  • Minimum Installed bend radius – 8 x diameter

  • Operating Temperature Range -20 to 60C

  • Standards: EIA/TIA 568A;

  • ISO/IEC 11801 2nd ed.; IEC 61156-5

  • EN 50173; EN 50288-3-1

  • Fire Performance – IEC 60332-3-22 (Cat. A); IEC 60754-2; IEC 61034

  • Outer Diameter: 10.2 mm for the FTP
