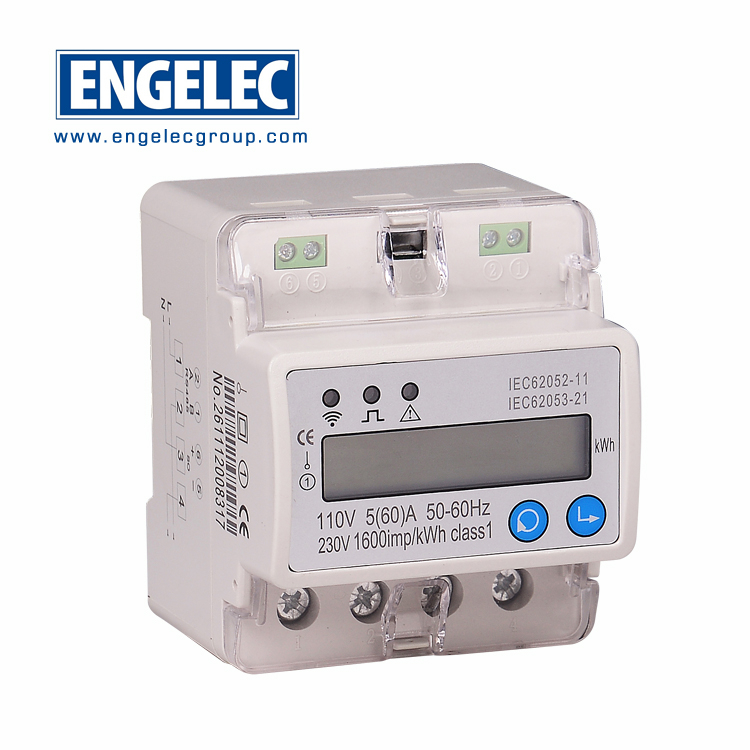

EEDDS238-4 W Single Phase DIN Rail WiFi Energy Meter
General Description
DDS238-4 W type multi-function smart energy meter is designed to measure single phase two wire AC active energy and variable parameter. The meter have RS485 communication port and WIFI communication, it can use APP for remote reading and control on/off. All of its functions comply with the relative technical requirement for class 1 single phase watt hour meter in IEC62053-21 and its data communication rules obey the requirement of MODBUS-RTU and WIFI 802.11b/g/n.It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .
The meter should be installed in suitable environment with ambient temperature range between -25℃~+55℃,the relative humidity less than 75% and temperature limits between and-40℃~+70℃.
The meter is manufactured complying with international standard IEC62052-11 on “Electricity metering equipment (AC) General requirements tests and test conditions” and IEC62053-21 on “Static meters for active energy (classes 1 and 2).
Main Specification
Meter type | DDS238-4 W |
Rate frequency | 50 or 60 Hz |
Rated current | 5(60)A |
Rate voltage | 120V / 220V / 230V /240V L+N |
Normal voltage range | 90%Un~110%Un |
Limits voltage range | 70%Un~120%Un |
kWh Accuracy | Class 1 |
R.M.S accuracy | Class 0.5 |
Pulse constant | See meter |
RS485 port | MODBUS-RTU protocol, 1200~9600bps,None parity ,default 9600bps |
WIFI | 802.11b/g/n ,only support 2.4GHz network , not support 5GHz network |
Basic Features
Measuring positive & negative active energy with negative energy accumulated into positive energy,.
The meter also display three phase real voltage , real current , real active power , real power factor , real frequency
Pulse LED indicates working of meter,Pulse output with optical coupling isolation,18~27V 27mA .
RS485 communication port and WIFI communication
Measuring active energy without calibration under long term operation
Display step by step with button
It can use APP software for data reading and remoter control on/off.
It has overvoltage and undervoltage protection , it can set value from APP
It has overload protection ,it can set value from APP
It has timing control function , it can set value from APP
It can reset the active energy to zero from APP
