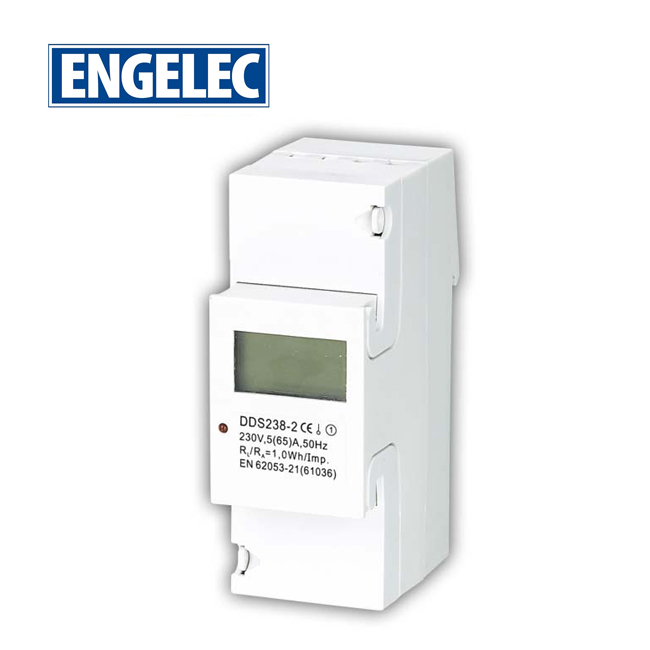

EEDDS238-2 Single Phase Din-rail Energy Meter LCD/Register Display

The meter is designed to measure single phase two wire AC active energy。 The meter comply with the relative technical requirement for class 1 single phase watt hour meter in IEC62053-21. It is a long life meter withe advantage of high stability, high overload capability, low power loss and small volume.
  • EEDDS238-2

  • ENGELEC

  • EEDDS238-2

Size:
Availability:

EEDDS238-2 Single Phase Din-rail Energy Meter LCD/Register Display


Generaal Description:

     The meter is designed to measure single phase two wire AC active energy。 The meter comply with the relative technical requirement for class 1 single phase watt hour meter in IEC62053-21. It is a long life meter withe advantage of high stability, high overload capability, low power loss and small volume.


Main Specification:

Type EEDDS238-2
Rated voltage 110V,120V,130V,220V,230V,240V
Workingvoltage range 0.8-1.2Un
Rated current 5(65A),5(60)A
Frequency 50Hz/60Hz
Connection mode Direct type
Display LCD or mechanical step register
Accuracy class 1.0
Powerconsumption <2W/10VA
Start current 0.004lb
Constant 1000-3200 iimp/kWh
Pulse output Passive pulse, pulse width is 80±5ms
Communicationport Not With
Exeutivestandard IEC61036, IEC62053-21
Workingtemperature ﹣30℃-70℃
Outlinedimension 90*35*60mm(LxWxH)
Weight Approx 0.11kg


Basic Features:

  • LCD display 5+1/ 4+2; or mechanical step register 5+1

  • Bi-directional total active energy measurement ,reverse active energy measure in the total active energy

  • Pulse LED indicates working of meter,Pulse output with optical coupling isolation

  • 35mm din rail installation


Optional Features:

  • LCD dispaly with reset function

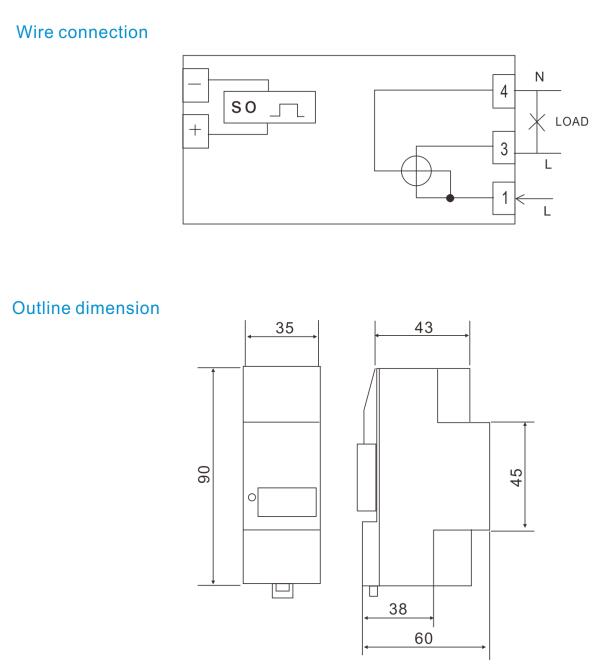

2P size
