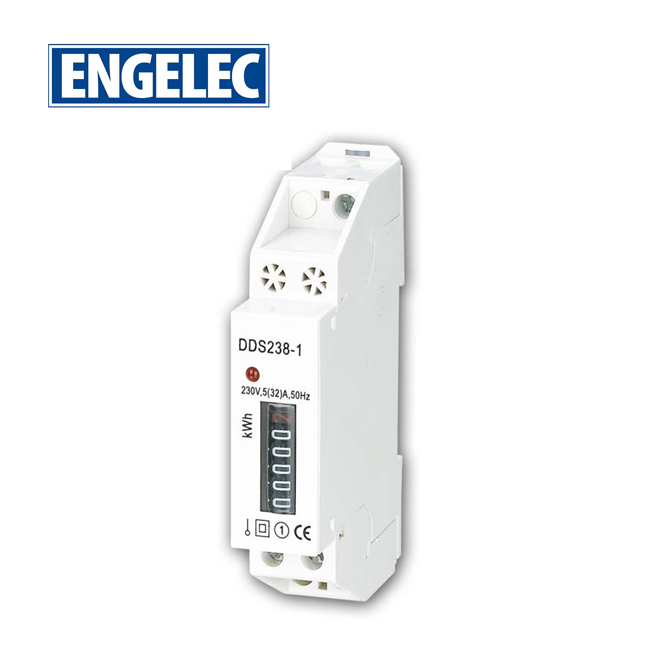

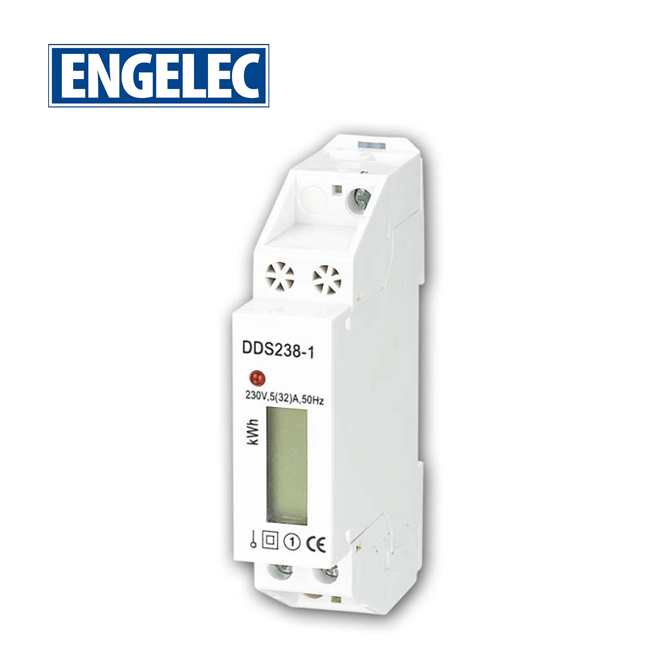

EEDDS238-1 Single Phase Din-rail Energy Meter LCD/Register Display
Generaal Description:
The meter is designed to measure single phase two wire AC active energy。 The meter comply with the relative technical requirement for class 1 single phase watt hour meter in IEC61036(IEC62053-21). It is a long life meter withe advantage of high stability, high overload capability, low power loss and small volume.
Main Specification:

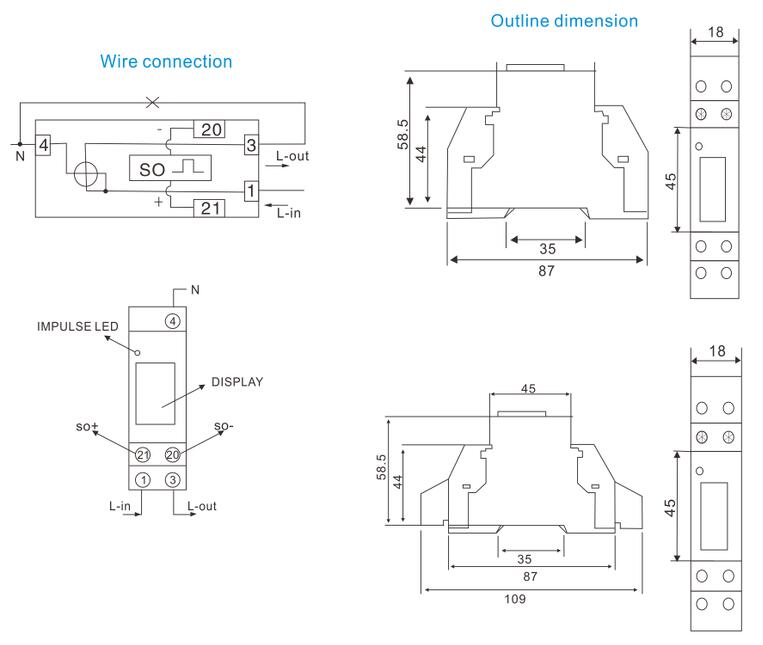

Type | EEDDS238-1 |
Rated voltage | 110V,120V,130V,220V,230V,240V |
Working voltage range | 0.8-1.2Un |
Rated current | 5(32A),5(30)A |
Frequency | 50Hz/60Hz |
Connection mode | Direct type |
Display | LCD or mechanical step |
Accuracy class | 1.0 |
Power consumption | <2W/10VA |
Start current | 0.004lb |
Constant | 1000-3200 iimp/kWh |
Pulse output | Passive pulse, pulse width is 80±5ms |
Communication port | RS485 port, baud rate 1200-9600bps, default is 4800bps |
Exeutive standard | IEC61036, IEC62053-21 |
Working temperature | ﹣30℃-70℃ |
Outline dimension | 84*18*59.5mm(LxWxH) |
Weight | Approx 0.06kg |
Basic Features:
LCD display 6+1/ 5+2; or mechanical step register 5+1
Bi-directional total active energy measurement ,reverse active energy measure in the total active energy
Pulse LED indicates working of meter,Pulse output with optical coupling isolation
35mm din rail installation
Basic Features:
long termincal cover protection
two neutral line terminal connection N-in, N-out
Measure as unit Wh, LCD dispaly 9999999 Wh.
