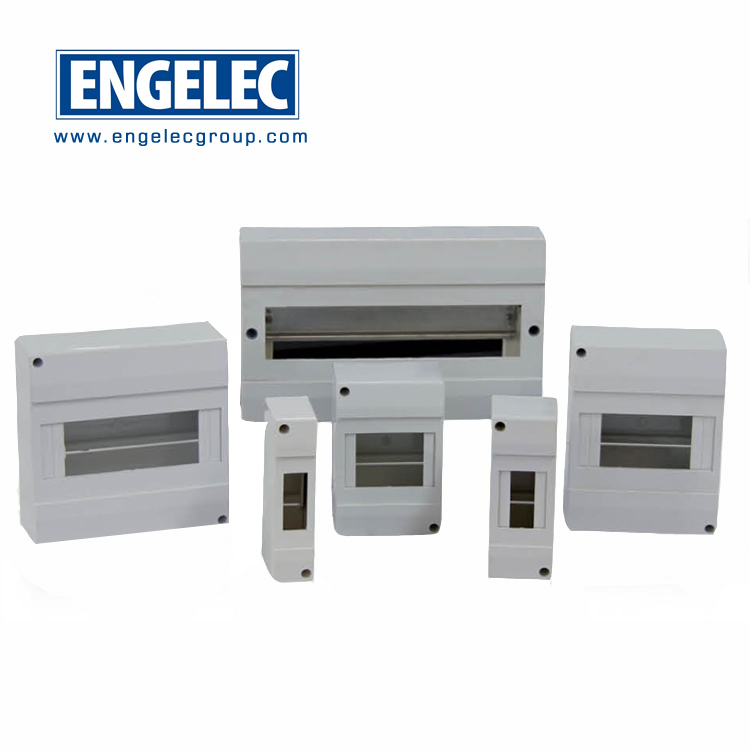

Distribution Box, HAG II Series
Generaal Description:
HAG II series of surface box is kind of good-looking outline small volume, easy installation economically modular distribution. It mainly use for building eclectic distribution system’s installation, matched and house rebuild fitment etc application. Max. rated current is 63A
Main Features
Rated current:
1 way to 4 way: 50A
6 way to 18 way: 63A
Material:
Insulation: fire-proof type refractory material
Color: white
Standard: IEC 060439-3
Protection:
IP30, IEC60529
Fire-resistance and anomaly heat ability: IEC 60529-1, 650C/30sec
Composition, structure:
Removable matte blocks to increase the poles. The movable various size holes are available on the box of up and down, bottom in case of connecting wires in and out.

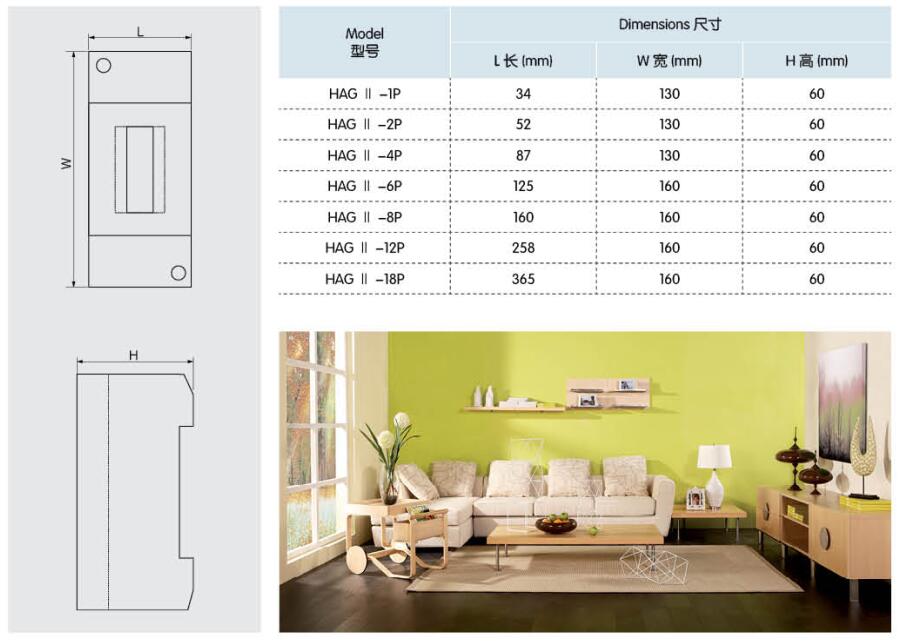

Product Size:
