Veriflex SY PVC (YSLYSY) Control Cable

SY CABLE - YSLYSY AND HSLHSH CABLE


APPLICATIONS OVERVIEW

Due to the mechanical strength provided by their galvanised steel wire braid (GSWB), SY cables, including the Veriflex SY PVC cable, are widely used in industrial applications as interconnecting cables in control equipment or machines where they are subjected to medium mechanical stresses. These flexible instrumentation cables can be used in installations where free movement is required without tensile stresses and without forced guidance systems.

SY cables, also known as armoured flexible control cable, shielded flex, or simply armoured flex, are strong and durable cables suitable for internal dry, damp or wet environments (including oil-water mixtures), and can be used outdoors when protected against direct sunlight. They are also referred to by their constructional reference: YSLYSY cables for the PVC sheathed variation.

The voltage rating for these shielded flexible multi-core control cables is 300/500V.


SY CABLE SPECIFICATIONS (YSLYSY / HSLHSH) FOR CONSTRUCTION

  SY LSZH Veriflex SY PVC
Copper Conductor Class 5 flexible Class 5 flexible
Insulation Halogen free Type TI6 PVC Type TI2
Bedding LSZH type TI6 PVC Type TM2
Braiding Galvanised steel wire braid (GSWB) GSWB
Sheath LSZH Type TM7 (black) PVC Type TM2 (clear / transparent)


YSLYSY CABLE AND HSLHSH CABLE CORE CODES

2 core SY cables are available as standard with black numbered cores, with 3 cores and above being black numbered cores with green/yellow. Coloured cores with and without green/yellow are also available upon request.

European references for these cables indicate the core configurations within the sheathing


SY Cable LSZH Veriflex SY Cable PVC
SY-OZ / HSLHSH-OZ LSZH sheathed cable with black numbered cores SY-OZ /    YSLYSY-OZ PVC sheathed cable with black numbered cores
SY-JZ /    HSLHSH-JZ LSZH sheathed cable with black numbered cores and G/Y earth SY-JZ /    YSLYSY-JZ PVC sheathed cable with black numbered cores and G/Y earth
SY-OB /      HSLHSH-OB LSZH sheathed cable with coloured cores SY-OB /    YSLYSY-OB PVC sheathed cable with coloured cores
SY-JB /    HSLHSH-JB LSZH sheathed cable with coloured cores including G/Y earth SY-JB /    YSLYSY-JB PVC sheathed cable with coloured cores including G/Y earth



The grey oversheath SY flex cable with UL and CSA approval tends to be used on equipment intended for export to the North American market.

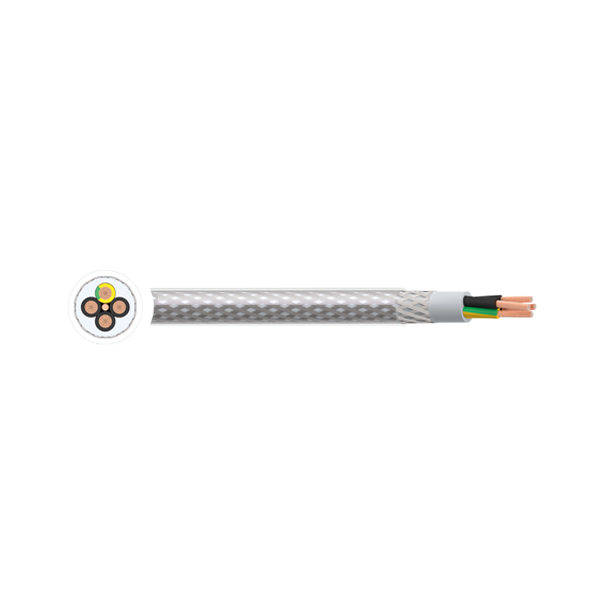

The clear oversheath of the Veriflex SY PVC cable allows the visual detection of any signs of deterioration, damage or corrosion.


SY CABLE STANDARDS

SY control cables are manufactured to VDE0250, the German national standard that has become internationally recognised as the benchmark for cables, wires and flexible cords for power installations for process and automation equipment and applications in manufacturing plants. Our technical team in The Cable Lab conduct extensive tests on our SY cable portfolio to ensure that our stockholding meets the designated standards and performance requirements.


SY-cable-supplier


SY CABLE SELECTION

As a leading SY control cable supplier we have vast experience of advising on SY cable properties and sizes. ENGELECCABLE technical team is available to discuss the most suitable option for your application as well as offering a range of SY cable glands, terminations and other accessories.


VERIFLEX SY CABLE DIMENSIONS (PVC SHEATH)

Part Number Number of Cores Nominal Cross-Sectional Area Max. Diameter Wires in Conductor mm Nominal Overall Diameter mm Nominal Weight kg/km Suggested SY Cable Gland (CXT)
V0202012CL00000 2 0.75mm2 0.21 7.2 79.3 16
V0202022CL00000 2 1.0mm2 0.21 7.6 91 20
V0202032CL00000 2 1.5mm2 0.26 8.2 110 20
V0203012CL00000 3 0.75mm2 0.21 7.5 91.3 16
V0203021CL000 3 1mm2 0.21 7.9 104 20
V0203031CL000 3 1.5mm2 0.26 8.6 129 20
V0203041CL000 3 2.5mm2 0.26 10.1 185 25
V0203051CL000 3 4mm2 0.31 12.0 269 25
V0203061CL000 3 6mm2 0.31 13.5 354 32
V0203071CL000 3 10mm2 0.41 16.9 579 32
V0203081CL000 3 16mm2 0.41 19.0 785 40
V0203091CL000 3 25mm2 0.41 23.5 1211 40
V0203101CL000 3 35mm2 0.41 26.7 1642 50
V0204011CL000 4 0.75mm2 0.21 8.0 107 20
V0204021CL000 4 1mm2 0.21 8.5 124 20
V0204031CL000 4 1.5mm2 0.26 9.2 151 20
V0204041CL000 4 2.5mm2 0.26 11.1 230 32
V0204051CL000 4 4mm2 0.31 13.2 332 32
V0204061CL000 4 6mm2 0.31 14.8 442 32
V0204071CL000 4 10mm2 0.41 18.8 735 40
V0204081CL000 4 16mm2 0.41 20.9 988 40
V0204091CL000 4 25mm2 0.41 26.0 1536 40
V0204101CL000 4 35mm2 0.41 30.0 2098 50
V0204111CL000 4 50mm2 0.41 35.3 2968 63
V0204121CL000 4 70mm2 0.51 40.5 3822 63
V0204131CL000 4 95mm2 0.51 49.4 5369 63



Additional sizes ranging from 5 cores up to 25 cores are listed on the technical specification sheet with larger cores sizes available upon request.


Dimensions and Part Numbers for SY LSZH Cable may be different. Please refer to the datasheets for full information. SY Cable with UL/CSA Approval also available upon request.


Also available area wide range of other industrial automation cables including unscreened YY cable for use where there is light mechanical stress and CY cables creened with copper wire braid for EMC protection. Talk to our technical experts for advice on control cable selection or see our control cable datasheets.


CABLE STANDARDS AND APPROVALS


Veriflex SY PVC (YSLYSY) Control Cable

VDE 0207-363-3, VDE 0285-525-2-51, VDE 0285-525-1, VDE 0285-525-2-11, VDE 0482-332-1-2, VDE 819-102 (TM54)
Flame Retardant according to IEC 60332-1-2


SY LSZH Control Flexible Cable

Generally to VDE0250, BS EN/IEC 60332-3, BS EN/IEC 60754-1 and 2, BS EN 50267-2-1 and 2, BS EN/IEC 61034-1
