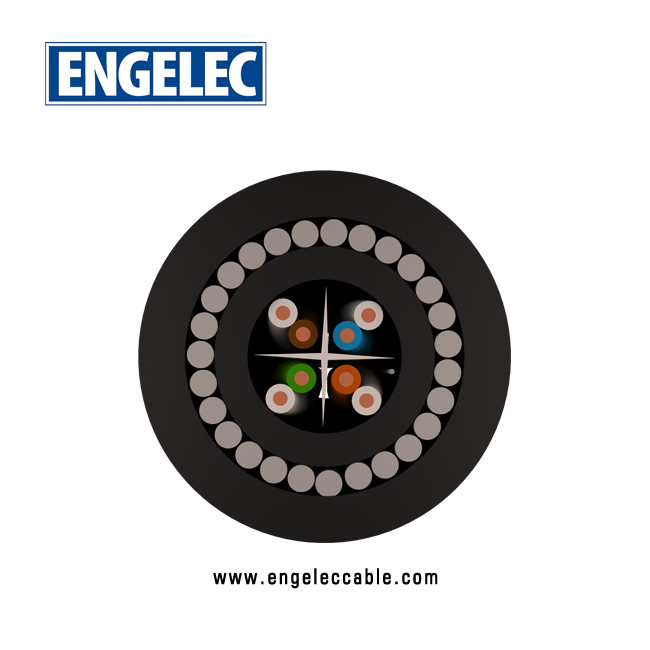

Outdoor SWA Armoured U/UTP Cat 6 Lan Cable

The SWA armoured cat 6 lan cable features a tough, waterproof and UV resistant PE sheath. SWA Armored Cat 6 UTP network cable is ideal for external installations where the cable may be run through ducts or exposed outdoor.

For heavy duty applications and where enhance mechanical protection is required, we offer an SWA (Steel Wire Armoured) version with an additional PE sheath. These are extremely robust cables suitable for fixed installations and direct burial.

Outdoor SWA Armoured  U/UTP Cat 6 Lan Cable


  • Solid Copper (not cheap CCA)

  • SWA Galvanised Steel Wire Armoured (superior then corrugated)

  • IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T

  • Outstanding electrical characteristics

  • Low attenuation  between the pairs

  • Halogen-free

  • Flame retardant according to IEC 60332-3-24 and EN 50266-2-4

  • Non-corrosive according to IEC 60754-2 (FRNC) and EN 50267

  • Low smoke according to IEC 61034 and EN 50268

  • Screened PET/AL-Laminated Foil

  • Armour – Steel Wire Armour

  • Supports 1GIG network speeds

  • ISO and TIA approved

  • EIA/TIA 568-B.2-1

  • ISO/IEC 11801

  • IEC 61156-5

  • EN 50173, EN50288-5

  • Fire Standard Approved

  • Fire certified to IEC 60332-1

  • Outer Sheath O.D – 9.64mm (UTP option)
