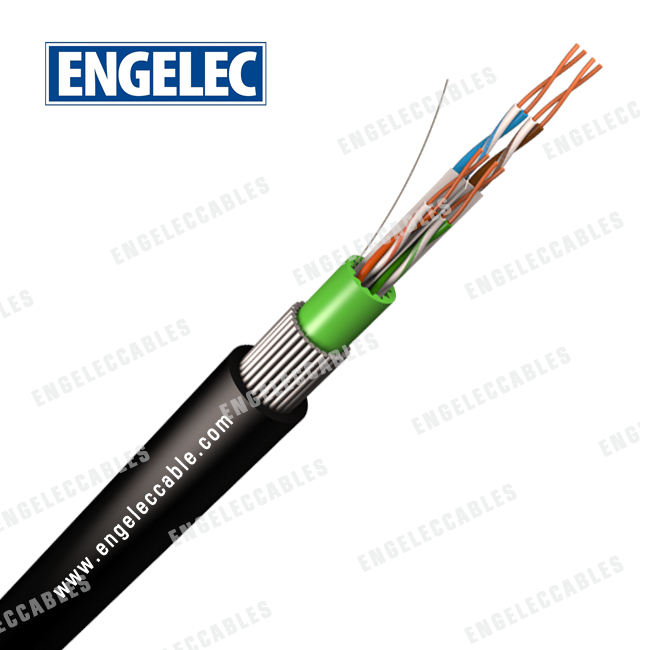

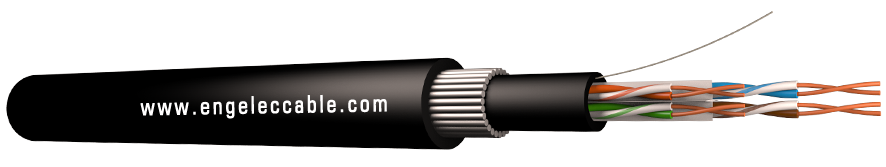

Outdoor SWA Armoured U/UTP Cat 6A Lan Cable

Name: Outdoor SWA Armoured U/UTP Cat 6A Lan Cable
Brand: ENGELEC
Rating: 5.0 (35 reviews)

The SWA armoured cat 6 lan cable features a tough, waterproof and UV resistant PE sheath. SWA Armored Cat 6A UTP network cable upto 550MHz is ideal for external installations where the cable may be run through ducts or exposed outdoor. For heavy duty applications and where enhance mechanical protection is required, we offer an SWA (Steel Wire Armoured) version with an additional PE sheath. These are extremely robust cables suitable for fixed installations and direct burial.

Model:
SWA U/UTP CAT6A
Brand:
ENGELEC
Code:
ca6uua
Download:
c6auua datasheet.pdf

Size:	4X2X23AWG
Availability:



Enquiry Add to Basket

Product Description

Outdoor SWA Armoured U/UTP Cat 6A Lan Cable

Solid Copper (not cheap CCA)
SWA Galvanised Steel Wire Armoured (superior then corrugated)
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T
Outstanding electrical characteristics
Low attenuation between the pairs
Halogen-free
Flame retardant according to IEC 60332-3-24 and EN 50266-2-4
Non-corrosive according to IEC 60754-2 (FRNC) and EN 50267
Low smoke according to IEC 61034 and EN 50268
Armour – Steel Wire Armour
Supports 1GIG network speeds
ISO and TIA approved
EIA/TIA 568-B.2-1
ISO/IEC 11801
IEC 61156-5
EN 50173, EN50288-5
Fire Standard Approved
Fire certified to IEC 60332-1
Outer Sheath O.D – 9.64mm (UTP option)

ISO/IEC 11801 TIA 568C.2 Armored Ethernet cables Steel wire armored Ethernet cables armored Lan cables Armored data cables Armored cat 5e cables armored cat 6 cables armored cat 6A cables Armored UTP cables Armored FTP cables
