Micro Switch, AZ Series

Side mount switches
Momentarv contacts
Wide choice of heads and actuators
Sealed actuators
Completely sealed construction
Plastic sealed housing
  • AZ
  • AZ

Micro Switch, AZ Series



Features:

  • Side mount switches

  • Momentarv contacts

  • Wide choice of heads and actuators

  • Sealed actuators

  • Completely sealed construction

  • Plastic sealed housing


Main Specification:


Item Value
Operation speed 0.01mm to   50m/Sec
Action frequency 120   times/Minute
Contact resistance Under 15mΩ   (Initial)
Insulation resistance 100mΩ above   (under 500VDC)
Bearing voltage Non-contact   end: 1000VAC, 50/60Hz for one minute, Current parts and noncurrent parts and   end and connect opsition: 1500VAC, 50/60Hz for one minute
Vibration Action: 10 to   55Hz: 1.5mm pairs swing
Hitting Machine:  400m/Sec² (about 40G'S); Action: 100m/Sec² (about 10G'S)
Ambient temperature -25℃ to 80℃
Humidity Below 95%RH
Serve life Mechanically: 10000000 times above (at rated ot); Electrically: 500000 times above
Protection structure IEC specification: IP65

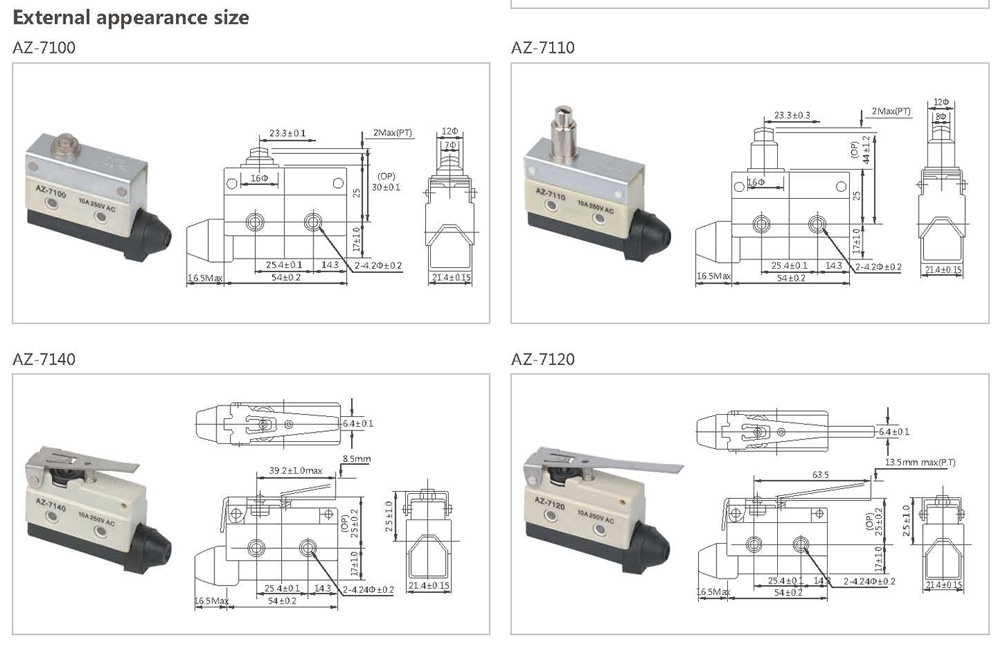

Az-1_看图王

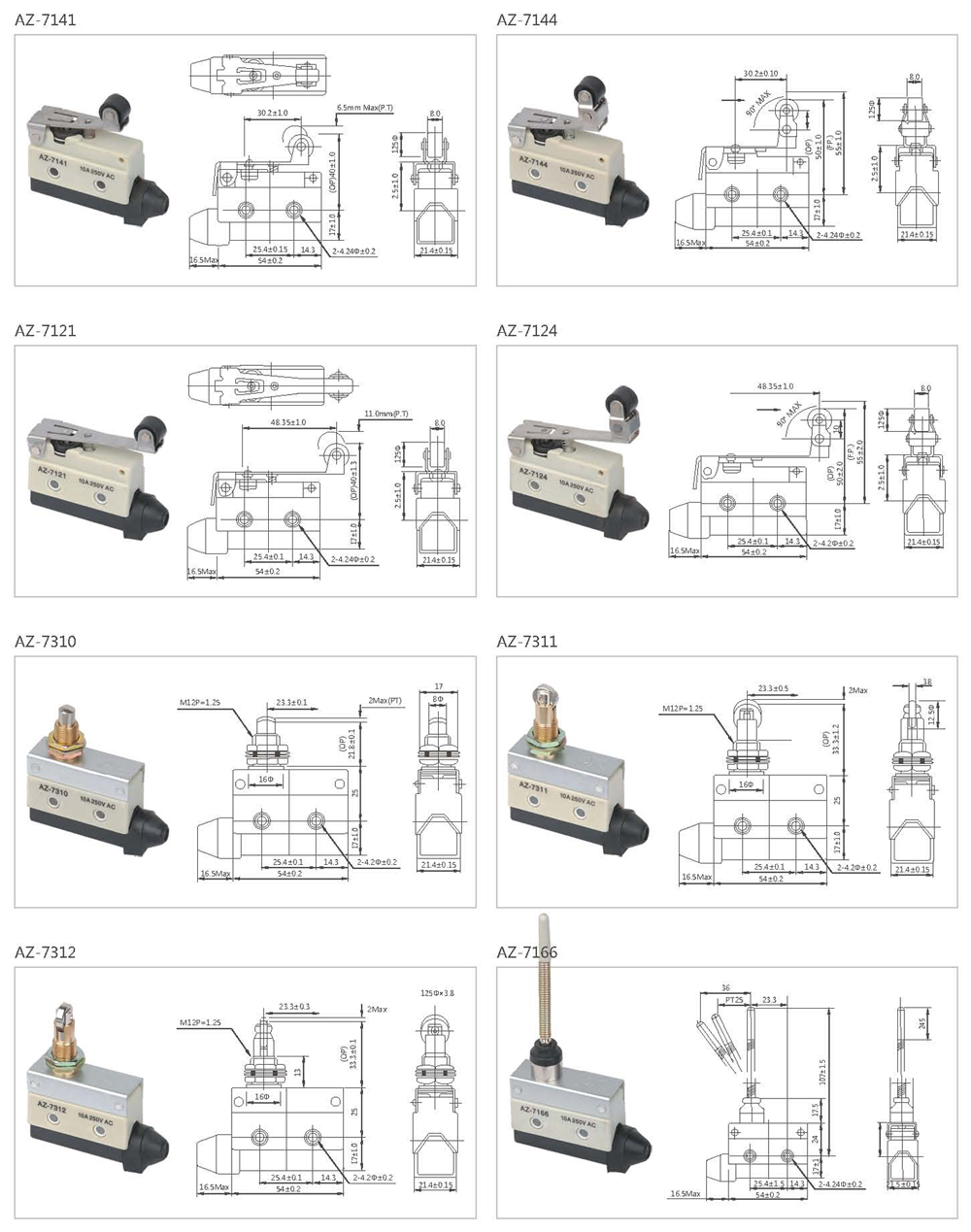

AZ-2
