EEDTS238-7W WiFi DIN Rail Three Phase Smart Energy Meter

DTS238-7W WiFi type multi-function remote control smart energy meter is used to measure three phase four wire AC active energy and variable parameter. This meter has RS485& WIFI communication function, Especially the WiFi function offer the max. convinience for remote monitor and controlling by phone APP, its data communication rules comply with the requirement of MODBUS-RTU & WIFI 802.11b/g/n.

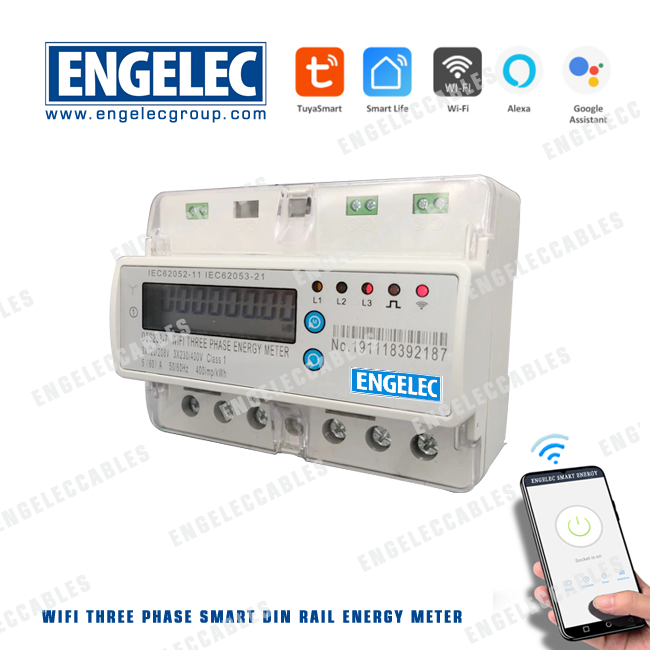

EEDTS238-7W WiFi DIN Rail Three Phase Smart Energy Meter

General Description

     EEDTS238-7 WIFI type multi-function smart energy meter is designed to measure three phase four wire AC active energy and variable parameter. The meter have RS485 communication port and WIFI communication, it can use APP for remote reading and control on/off. All of its functions comply with the relative technical requirement for class 1 three phase watt hour meter in IEC62053-21 and its data communication rules obey the requirement of MODBUS-RTU and WIFI 802.11b/g/n. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .

    The meters should be installed in suitable environment with ambient temperature range between-25°+55°,the relative humidity less than 75% and temperature limits between   and-40°+70°.

     The meters comply with international standard IEC62052-11 on Electricity metering equipment (AC) General requirements tests and test conditions and IEC62053-21 on Static meters for active energy (classes 1 and 2).


Main Specification

Meter type


Rate frequency

50 or 60 Hz

Rated current

1.5(6)A, 5A/CT, 5(60)A ,10(80)A

Rate voltage

3x120/208V , 3x220/380V , 3x230/400V ,   3x240/415V

Normal voltage range


Limits voltage range


kWh Accuracy

Class 1

R.M.S accuracy

Class 0.5

Pulse constant

See meter

RS485 port

MODBUS-RTU protocol, 12009600bps,None parity ,default 9600bps


802.11b/g/n ,only support 2.4GHz network   , not support 5GHz network

Basic Features

  • Measuring positive & negative active energy with negative energy accumulated into positive energy,.

  • The meter also display three phase real voltage , real current , real active power , real power factor , real frequency

  • Pulse LED indicates working of meter,Pulse output with optical coupling isolation

  • RS485 communication port and WIFI communication

  • Measuring active energy without calibration under long term operation

  • Display step by step with button

  • It can use APP software for data reading and remoter control on/off.

  • It has overvoltage and undervoltage protection , it can set value from APP

  • It has overload protection ,it can set value from APP

  • It has timing control function , it can set value from APP

  • It can reset the active energy to zero from APP

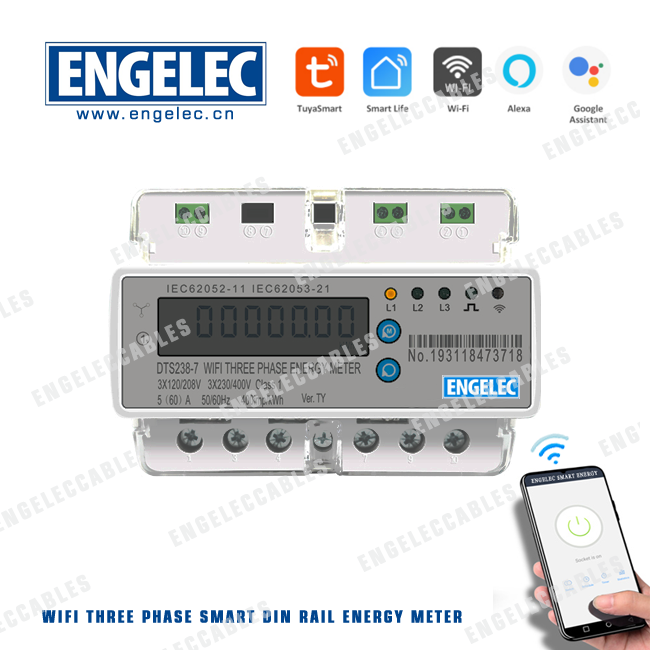

wifi rail DIN three phase smart energy meter02
