EEDDS238-4 ZN Multi-function Din-rail Energy Meter with RS485 Communication 4P

The meter is designed to measure single phase two wire AC active energy with time of use (TOU) function (the power flow of sharp time, peak time, flat time and off-peak time) and variable parameter. All of its functions comply with the relative technical requirement for class 1 single phase watt hour meter in IEC62053-21 and its data communication rules obey the requirement of DL/T645 or MODBUS-RTU. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume.
  • EEDDS238--4 ZN
  • ENGELEC
  • EEDDS238-4 ZN
Size:

EEDDS238-1 ZN Multi-function Din-rail Energy Meter with RS485 Communication


Generaal Description:

     The meter is designed to measure single phase two wire AC active energy with time of use (TOU) function (the power flow of sharp time, peak time, flat time and off-peak time) and variable parameter. All of its functions comply with the relative technical requirement for class 1 single phase watt hour meter in IEC62053-21 and its data communication rules obey the requirement of DL/T645 or MODBUS-RTU. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume.


Main Specification:

Type EEDDS238-4 ZN
Rated voltage 110V,120V,130V,220V,230V,240V
Working voltage range 0.8-1.2Un
Rated current 1.5(6)A,5(30)A,5(60A),10(40)A, 20(80)A, 20(100)A, 30(100)A. Or other as required
Frequency 50Hz/60Hz
Connection mode Direct type or with CT
Display LCD
Accuracy class 1.0
Power consumption <1W/10VA
Start current 0.004lb
Constant 800-6400 iimp/kWh
Pulse output Passive pulse, pulse   width is 80±5ms
Communication port RS485 port, baud rate 1200-9600bps, default is 4800bps; Infrared port
Exeutive standard IEC62053-21, DL/T645-2007 or MODUBUS-RTU
Working temperature ﹣30℃-70℃
Outline dimension 99*75*73mm(LxWxH)
Weight Approx 0.36kg


Basic Features:

  • LCD display, backup battery for LCD display at powre failure

  • Bi-directional total active energy measurement ,TOU active energy measure, reverse active energy measure in the total active energy

  • The meter also display real voltage , real current , real power , real power factor, real frequency, real time and date

  • The meter has 14 programmable internal tables, of which can set up to 14 intervals as four tariff during 24 hours. The minimum units of each tariff interval can be set up as 1 mintue.

  • Pulse LED indicates working of meter, Pulse output with optical coupling isolation

  • Nergy frozen daily (last 30 days) and monthly (last 12 months), all data store for 10 years at power failure.

  • Infrared and RS485 communication port ,MODBUS-TRU  ,None parity, 1200---9600 bps

  • The meter can automatically switch calendar and leap year

  • Event log

  • 35mm din rail installation

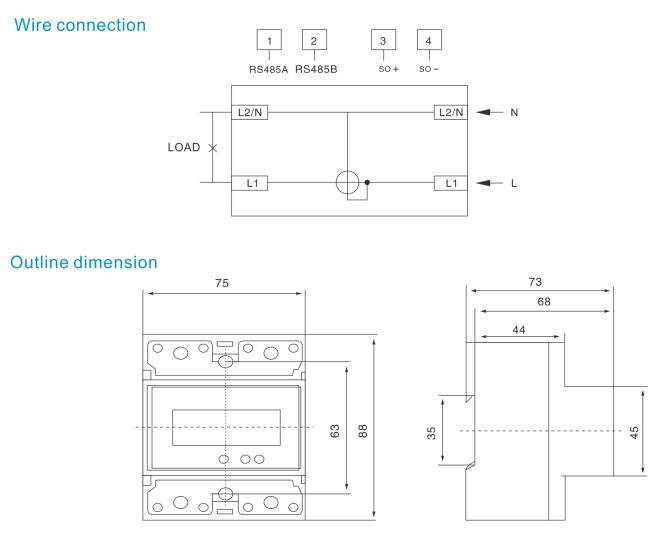

49 zn size
