SY
ENGELECCABLE
EESYX
Size: | |
---|---|
Availability: | |
ENGELECCABLE's flex SY control cables, due to the mechanical strength provided by their galvanised steel wire braid (GSWB), LSZH SY cables are widely used in industrial applications as interconnecting cables in control equipment or machines where they are subjected to medium mechanical stresses. These flexible instrumentation cables can be used in installations where free movement is required without tensile stresses and without forced guidance systems.
SY cables, also known as armoured flexible control cable, shielded flex, or simply armoured flex, are strong and durable cables suitable for internal dry, damp or wet environments (including oil-water mixtures), and can be used outdoors when protected against direct sunlight.For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. All plastic materials are low smoke and halogen free.
The voltage rating for these shielded flexible multi-core control cables is 450/750V.
Conductor |
Class 5, Annealed plain copper, sizes: 1.5mm²,2.5mm², 4mm² & 6mm² to BS 6360 |
Insulation |
90˚C LSZH (low smoke zero halogen),Type TI6 to BS 6746 |
Binder |
Transparant PET tape |
Colour code |
|
Screen |
Tinned Copper Wire Braiding, shielding coverage > 80% |
Bedding Sheath |
90˚C PVC (polyvinyl chloride), type TM7 to BS 6746, |
Outer sheath |
90˚C PVC Sheath, type TM7 to BS 6746 |
Sheath colour |
Transparant, gray or black |
* Operating temperature : -20˚C up to + 100˚C( fixed installation) ; -10˚C to +90˚C( flexed operation ).
* Minimum bending radius : 12 x overall diameter.
Conductor Area Size |
mm2 |
1.5 |
2.5 |
4 |
6 |
Conductor resistance max |
ohm/km |
13.3 |
7.98 |
4.95 |
3.3 |
Insulation resistance min |
Mohm/km |
25 |
25 |
25 |
25 |
Current carrying capacity at 30˚C in air |
A |
24 |
32 |
42 |
54 |
in conduct |
A |
15 |
18 |
26 |
34 |
Braided shielding coverage |
% |
>50 |
>50 |
>50 |
>50 |
Voltage drop |
mV/A/m |
25 |
15 |
9.5 |
6.4 |
AC voltage wthstand test |
V |
2500 |
2500 |
2500 |
2500 |
Rated voltage max |
V |
450/750 |
450/750 |
450/750 |
450/750 |
Engelec Cable Part Number |
No.of Cores |
Nominal Conductor CSA |
Nominal Thickness of Insulation |
Nominal Thickness of bedding |
Nominal Dia. over Bedding |
Thickness of steel wire braiding |
Nominal Thickness of Sheath |
Nominal Dia. of Cable |
Approx. Weight |
mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
||
EESYX3C15 |
3 |
1.5 |
0.6 |
0.5 |
6.6 |
0.2 |
0.7 |
8.4 |
138 |
EESYX3C25 |
3 |
2.5 |
0.7 |
0.5 |
7.9 |
0.2 |
0.8 |
9.9 |
188 |
EESYX3C40 |
3 |
4 |
0.8 |
0.6 |
9.6 |
0.2 |
0.9 |
11.8 |
256 |
EESYX3C60 |
3 |
6 |
0.8 |
0.6 |
10.7 |
0.2 |
1 |
13.1 |
352 |
EESYX4C15 |
4 |
1.5 |
0.6 |
0.5 |
7.3 |
0.2 |
0.7 |
9.1 |
161 |
EESYX4C25 |
4 |
2.5 |
0.7 |
0.5 |
8.8 |
0.2 |
0.8 |
10.8 |
223 |
EESYX4C40 |
4 |
4 |
0.8 |
0.6 |
10.6 |
0.2 |
1 |
13 |
310 |
EESYX4C60 |
4 |
6 |
0.8 |
0.6 |
11.6 |
0.2 |
1.1 |
14.2 |
430 |
EESYX5C15 |
5 |
1.5 |
0.6 |
0.5 |
8 |
0.2 |
0.8 |
10 |
189 |
EESYX5C25 |
5 |
2.5 |
0.7 |
0.5 |
9.7 |
0.2 |
0.9 |
11.9 |
264 |
EESYX5C40 |
5 |
4 |
0.8 |
0.6 |
11.5 |
0.2 |
1 |
13.9 |
350 |
EESYX5C60 |
5 |
6 |
0.8 |
0.6 |
12.8 |
0.2 |
1.1 |
15.4 |
523 |
EESYX7C15 |
7 |
1.5 |
0.6 |
0.5 |
8.8 |
0.2 |
0.8 |
10.8 |
202 |
EESYX7C25 |
7 |
2.5 |
0.7 |
0.5 |
10.6 |
0.2 |
1 |
13 |
300 |
EESYX7C40 |
7 |
4 |
0.8 |
0.6 |
12.6 |
0.2 |
1.1 |
15.2 |
440 |
EESYX7C60 |
7 |
6 |
0.8 |
0.6 |
14.1 |
0.2 |
1.2 |
16.9 |
580 |
EESYX12C15 |
12 |
1.5 |
0.6 |
0.6 |
11.2 |
0.2 |
1.1 |
13.8 |
330 |
EESYX12C25 |
12 |
2.5 |
0.7 |
0.7 |
14.7 |
0.2 |
1.2 |
17.5 |
470 |
EESYX12C40 |
12 |
4 |
0.8 |
0.8 |
17.4 |
0.2 |
1.4 |
20.6 |
680 |
EESYX12C60 |
12 |
6 |
0.8 |
0.8 |
19.4 |
0.2 |
1.4 |
22.6 |
890 |

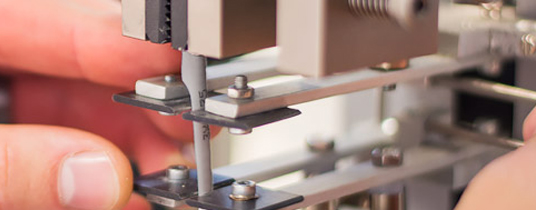

Professional and strict lab test after production.
VDE 0207-363-3, VDE 0285-525-2-51, VDE 0285-525-1, VDE 0285-525-2-11, VDE 0482-332-1-2, VDE 819-102 (TM54)
Flame Retardant according to IEC 60332-1-2
Generally to VDE0250, BS EN/IEC 60332-3, BS EN/IEC 60754-1 and 2, BS EN 50267-2-1 and 2, BS EN/IEC 61034-1
