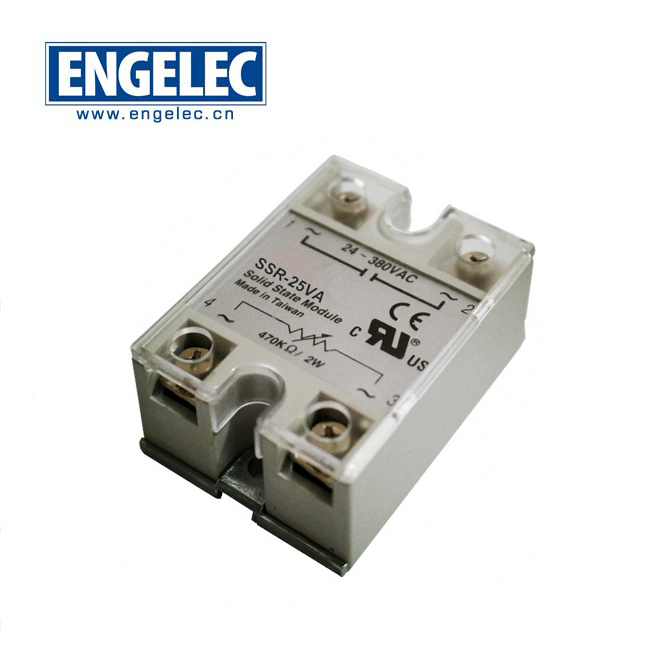

Solid State Voltage Regulator SSR-VA Series
General
1. A bi-directional controlled silicon ouput, zero voltage open, zero current switching;
2. Between input circuit and output circuit have optical isolation;
3. Solation voltage between input and output is 2500V;
4. Output of the power metal-oxide field effect transistor is very low on-resistance;
5. Input signal compatible with TTL logic circuits;
6. Between input circuit and output circuit have Transformer isolation;
7. LED indicated the working state;
8. With security cover.
Main Specification:
Rated load current(A) | Operating voltage(V) | Block voltage(V) | Voltage drop(V) | Leakage current(mA) | Peak current(A) | Dielectric strngth(V) | Peak current(A) | Insulation voltage(V) | Tj(℃) |
10 | 0~470 | 600 | 2.0 | 135 | 5.0 | 2500 | 135 | 50/500 | -30℃~80℃ |
25 | 0~470 | 600 | 2.0 | 275 | 5.0 | 2500 | 275 | 50/500 | |
40 | 0~470 | 600 | 2.0 | 410 | 5.0 | 2500 | 410 | 50/500 | |
60 | 0~470 | 600 | 2.0 | 535 | 5.0 | 2500 | 535 | 50/500 | |
80 | 0~470 | 600 | 2.0 | 675 | 5.0 | 2500 | 675 | 50/500 | |
100 | 0~470 | 600 | 2.0 | 835 | 5.0 | 2500 | 835 | 50/500 |
Solid State Voltage Regulator SSR-VA Series
General
1. A bi-directional controlled silicon ouput, zero voltage open, zero current switching;
2. Between input circuit and output circuit have optical isolation;
3. Solation voltage between input and output is 2500V;
4. Output of the power metal-oxide field effect transistor is very low on-resistance;
5. Input signal compatible with TTL logic circuits;
6. Between input circuit and output circuit have Transformer isolation;
7. LED indicated the working state;
8. With security cover.
Main Specification:
Rated load current(A) | Operating voltage(V) | Block voltage(V) | Voltage drop(V) | Leakage current(mA) | Peak current(A) | Dielectric strngth(V) | Peak current(A) | Insulation voltage(V) | Tj(℃) |
10 | 0~470 | 600 | 2.0 | 135 | 5.0 | 2500 | 135 | 50/500 | -30℃~80℃ |
25 | 0~470 | 600 | 2.0 | 275 | 5.0 | 2500 | 275 | 50/500 | |
40 | 0~470 | 600 | 2.0 | 410 | 5.0 | 2500 | 410 | 50/500 | |
60 | 0~470 | 600 | 2.0 | 535 | 5.0 | 2500 | 535 | 50/500 | |
80 | 0~470 | 600 | 2.0 | 675 | 5.0 | 2500 | 675 | 50/500 | |
100 | 0~470 | 600 | 2.0 | 835 | 5.0 | 2500 | 835 | 50/500 |
