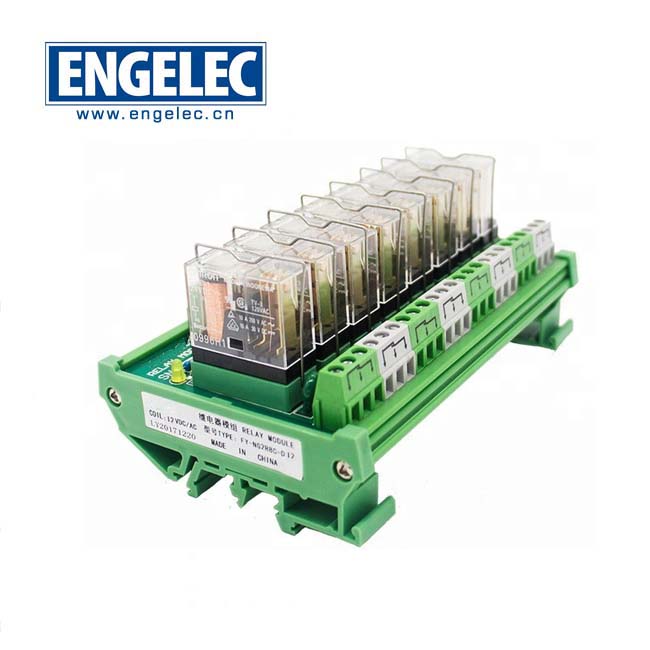

PLC Relay 8 Channel

PLC Relay 8 Channel are designed for current amplification and isolation protection of output loads. Applicable to PLC, microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key control systems not being destroyed.
  • PLC 8 Channel

  • ENGELEC

  • PLC 8 Channel

Size:
Availability:
PLC Relay 8 Channel

PLC Relay 8 Channel


Features:

1. DIN Rail interface relay modules 1/2/4/6/8/10/12/14/16 channels optional;

2. Buit-in OMRON relay certified with VDE,UL,CSA,SEV,SEMKO;

3. Switching current up to 10A at 250VAC or 30VDC;

4. Input connections by screw terminal block.NPN&PNP can be interchangeable, AC&DC can be in compatible;

5. Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel;

6. Relay socket pins are gold plated,makes contact more reliable and stable;

7. DIN Rail mountable for width TS15/28/35.



Relay Module Dimension:

Relay Qty

Dimension(mm)

N.W.(g)

1

18*85*70

50g

2

40*85*70

105g

4

70*85*70

200g

6

100*85*70

260g

8

130*85*70

340g

10

160*85*70

410g

12

190*85*70

480g

14

220*85*70

560g

16

250*85*70

595g



Technical Data:

Input Operation  Voltage

Rated DC±20% &AC±10%

Relay Mounting

Plug in

Rated Load Current

10A 250VAC/30VDC

Max Inrush Current

10A

Coil Power

Approx   0.53 W

Operate Time(at normal volt.)

≤15ms

Release Time(at normal volt.)

≤10ms

Input/Output Connections

Screw terminal block

Wire Range

0.2~2.5mm2

Stripping Length

6-7mm

DIN Rail Mountable

15/28/35mm
