LV Aerial Bundled Conductor (ABC) Cables
Conductor | Aluminium conductor, round stranded compressed (RM). |
Insulation | XPLE compound, UV-resistant. |

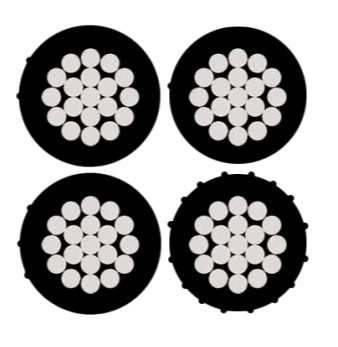

Core Identification | 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm^2 and a minimum of 16 ribs for cores above 50 mm^2. In the case of five core bundles the surface of the protective core should be smooth. |
Rated Voltage | 0.6/1kV |
Test Voltage | 4 Veff kV |
Minimum Laying Temperature | -20°C |
Operating Temperature | -40°C~ +90°C |
Maximum Short-circuit Temperature | 250°C |
Maximum Conductor Temperature | 80°C |
Minimum Bending Radius | 18×OD |
Number of Cores x Nominal Cross Section | Overall Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
---|---|---|---|---|---|
No.×mm^2 | mm | Kg/Km | Ω/Km | KN | A |
1x16 RM | 8.0 | 74 | 1.910 | 2.5 | 72 |
1x25 RM | 9.0 | 106 | 1.200 | 4.0 | 107 |
1x35 RM | 10.5 | 138 | 0.868 | 5.5 | 132 |
1x50 RM | 11.8 | 182 | 0.641 | 8.0 | 165 |
1x70 RM | 13.0 | 252 | 0.443 | 10.7 | 205 |
1x95 RM | 15.4 | 333 | 0.320 | 13.7 | 240 |
1x120 RM | 17.0 | 408 | 0.253 | 18.6 | 290 |
1x150 RM | 19.0 | 502 | 0.206 | 23.2 | 334 |
1x185 RM | 21.0 | 611 | 0.164 | 28.7 | 389 |
1x240 RM | 24.0 | 801 | 0.125 | 37.2 | 467 |
2x16 RM | 15.6 | 147 | 1.910 | 2.5 | 72 |
2x25 RM | 18.0 | 208 | 1.200 | 4.0 | 107 |
2x35 RM | 20.0 | 277 | 0.868 | 5.5 | 132 |
2x50 RM | 23.5 | 361 | 0.641 | 8.0 | 165 |
2x70 RM | 25.4 | 505 | 0.443 | 10.7 | 205 |
2x95 RM | 30.3 | 666 | 0.320 | 13.7 | 240 |
2x150 RM | 38.0 | 1004 | 0.206 | 23.2 | 334 |
4x16 RM | 18.8 | 286 | 1.910 | 2.5 | 72 |
4x25 RM | 21.2 | 430 | 1.200 | 4.0 | 107 |
4x35 RM | 24.1 | 553 | 0.868 | 5.5 | 132 |
4x50 RM | 27.8 | 746 | 0.641 | 8.0 | 165 |
4x70 RM | 31.8 | 1009 | 0.443 | 10.7 | 205 |
4x95 RM | 37.8 | 1332 | 0.320 | 13.7 | 240 |
4x120 RM | 54.4 | 1632 | 0.253 | 18.6 | 290 |
4x50 + 1x25 RM | 31.9 | 814 | 0.641/1.200 | 8.0/4.0 | 165/107 |
4x50 + 1x35 RM | 31.9 | 845 | 0.641/0.868 | 8.5/5.5 | 165/132 |
4x70 + 1x25 RM | 36.0 | 1105 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x70 + 2x25 RM | 40.0 | 1217 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x95 + 1x25 RM | 41.8 | 1438 | 0.320/1.200 | 13.7/4.0 | 240/107 |
4x95 + 2x25 RM | 42.0 | 1544 | 0.320/1.200 | 13.7/4.0 | 240/107 |
4x120 + 1x25 RM | 59.0 | 2050 | 0.253/1.200 | 18.6/4.0 | 290/107 |
Other cross-sections can be offered upon request.
Number of Cores x Nominal Cross Section | Overal Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
---|---|---|---|---|---|
No.×mm^2 | mm | Kg/Km | Ω/Km | KN | A |
1x16+1x25 RM | 15.3 | 160 | 1.910 | 2.5 | 72 |
3x16+1x25 RM | 19.0 | 290 | 1.200 | 4.0 | 107 |
3x25+1x25 RM | 23.2 | 400 | 0.868 | 5.5 | 132 |
3x35+1x25 RM | 25.6 | 500 | 0.641 | 8.0 | 165 |
3x50+1x35 RM | 30.0 | 680 | 0.443 | 10.7 | 205 |
3x70+1x50 RM | 34.9 | 920 | 0.320 | 13.7 | 240 |
3x95+1x70 RM | 40.6 | 1270 | 0.253 | 18.6 | 290 |
3x120+1x70 RM | 44.1 | 1510 | 0.206 | 23.2 | 334 |
3x150+1x95 RM | 49.2 | 1870 | 0.164 | 28.7 | 389 |
3x185+1x120 RM | 54.9 | 2340 | 0.125 | 37.2 | 467 |
3x25+1x25+1x16 RM | 23.2 | 470 | 1.910 | 2.5 | 72 |
3x35+1x25+1x16 RM | 25.6 | 560 | 1.200 | 4.0 | 107 |
3x50+1x35+1x16 RM | 30.0 | 740 | 0.868 | 5.5 | 132 |
3x70+1x50+1x16 RM | 34.9 | 980 | 0.641 | 8.0 | 165 |
3x95+1x70+1x16 RM | 40.6 | 1330 | 0.443 | 10.7 | 205 |
3x120+1x70+1x16 RM | 44.1 | 1580 | 0.320 | 13.7 | 240 |
3x150+1x95+1x16 RM | 49.2 | 1940 | 0.206 | 23.2 | 334 |
3x185+1x120+1x16 RM | 54.9 | 2410 | 1.910 | 2.5 | 72 |
Other cross-sections can be offered upon request.
number of cores x nominal cross section | outer diameter | total weight | max. conductor- resistance | min. breaking load of conductor strand | current rating in the air 1) |
---|---|---|---|---|---|
mm^2 | ca. mm | ca. kg/km | Ohm/km | kN | A |
2x 16 RM | 15.6 | 147 | 1.910 | 2.5 | 72 |
2x 25 RM | 18.0 | 208 | 1.200 | 4.0 | 107 |
2x 35 RM | 20.0 | 277 | 0.868 | 5.5 | 132 |
2x 50 RM | 23.5 | 361 | 0.641 | 8.0 | 165 |
4x 16 RM | 18.8 | 286 | 1.910 | 2.5 | 72 |
4x 25 RM | 21.2 | 430 | 1.200 | 4.0 | 107 |
4x 35 RM | 24.1 | 553 | 0.868 | 5.5 | 132 |
4x 50 RM | 27.8 | 746 | 0.641 | 8.0 | 165 |
4x 70 RM | 31.8 | 1009 | 0.443 | 10.7 | 205 |
4x 95 RM | 37.8 | 1332 | 0.320 | 13.7 | 240 |
4x 120 RM | 54.4 | 1632 | 0.253 | 18.6 | 290 |
4x 35 + 1x 35 RM | 30.0 | 694 | 0.868/0.868 | 5.5/5.5 | 132/132 |
4x 50 + 1x 25 RM | 31.9 | 814 | 0.641/1.200 | 8.0/4.0 | 165/107 |
4x 50 + 1x 35 RM | 31.9 | 845 | 0.641/0.868 | 8.5/5.5 | 165/132 |
4x 70 + 1x 25 RM | 36.0 | 1105 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x 70 + 2x 25 RM | 40.0 | 1217 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x 70 + 1x 35 RM | 36.2 | 1150 | 0.443/0.868 | 10.7/5.5 | 205/132 |
4x 70 + 2x 35 RM | 40.1 | 1289 | 0.443/0.868 | 10.7/5.5 | 205/132 |
4x 95 + 1x 25 RM | 41.8 | 1438 | 0.320/1.200 | 13.7/4.0 | 240/107 |
4x 95 + 1x 35 RM | 41.8 | 1467 | 0.320/0.868 | 13.7/5.5 | 240/132 |
4x 95 + 2x 25 RM | 42.0 | 1544 | 0.320/1.200 | 13.7/4.0 | 240/107 |
Other cross-sections can be offered upon request.
Number of Cores x Nominal Cross Section | Overal Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
---|---|---|---|---|---|
No.×mm^2 | mm | Kg/Km | Ω/Km | KN | A |
2x10 RM | 12.8 | 93 | 3.080 | 1.5 | 38 |
4x10 RM | 15.4 | 183 | 3.080 | 1.5 | 38 |
2x16 RM | 14.8 | 129 | 1.910 | 2.3 | 72 |
2x16 RN + 2x1.5 RE | 14.8 | 176 | 1.910/12.100 | 2.3 | 72 |
4x16 RM | 17.8 | 257 | 1.910 | 2.3 | 72 |
4x16 RN + 2x1.5 RE | 17.8 | 304 | 1.910/12.100 | 2.3 | 72 |
2x25 RM | 18.0 | 202 | 1.200 | 3.8 | 107 |
2x25 RM + 2x1.5 RE | 18.0 | 249 | 1.200/12.100 | 3.8 | 107 |
4x25 RM | 21.7 | 404 | 1.200 | 3.8 | 107 |
4x25 RM + 2x1.5 RE | 21.7 | 451 | 1.200/12.100 | 3.8 | 107 |
2x35 RM | 20.8 | 269 | 0.868 | 5.2 | 132 |
2x35 RM + 2x1.5 RE | 20.8 | 316 | 0.868/12.100 | 5.2 | 132 |
4x35 RM | 25.1 | 539 | 0.868 | 5.2 | 132 |
4x35 RM + 2x1.5 RE | 25.1 | 586 | 0.868/12.100 | 5.2 | 132 |
2x50 RM | 23.4 | 352 | 0.641 | 7.6 | 165 |
2x50 RM + 2x1.5 RE | 23.4 | 399 | 0.641/12.100 | 7.6 | 165 |
1x54.6 RM + 3x25 RM | 21.7 | 507 | 0.630/1.200 | 3.8 | 107 |
1x54.6 RM + 3x25 RM + 1x16 RM | 24.3 | 573 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1x54.6 RM + 3x25 RM + 2x16 RM | 29.7 | 639 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1x54.6 RM + 3x25 RM + 3x16 RM | 31.1 | 705 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1x54.6 RM + 3x35 RM | 25.1 | 615 | 0.630/0.868 | 5.2 | 132 |
1x54.6 RM + 3x35 RM + 1x16 RM | 28.1 | 680 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1x54.6 RM + 3x35 RM + 2x16 RM | 34.3 | 748 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1x54.6 RM + 3x35 RM + 3x16 RM | 35.9 | 814 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1x54.6 RM + 3x35 RM + 1x25 RM | 28.1 | 714 | 0.630/0.868/1.200 | 5.2/3.8 | 132/107 |
1x54.6 RM + 3x50 RM | 28.2 | 741 | 0.630/0.641 | 7.6 | 165 |
1x54.6 RM + 3x50 RM + 1x16 RM | 31.6 | 806 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1x54.6 RM + 3x50 RM + 2x16 RM | 38.6 | 875 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1x54.6 RM + 3x50 RM + 3x16 RM | 40.4 | 940 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1x54.6 RM + 3x50 RM + 1x25 RM | 31.6 | 841 | 0.630/0.641/1.200 | 7.6/3.8 | 165/107 |
1x54.6 RM + 3x70 RM | 33.0 | 950 | 0.630/0.443 | 10.2 | 205 |
1x54.6 RM + 3x70 RM + 1x16 RM | 37.0 | 1014 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1x54.6 RM + 3x70 RM + 2x16 RM | 45.2 | 1083 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1x54.6 RM + 3x70 RM + 3x16 RM | 47.3 | 1148 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1x54.6 RM + 3x70 RM + 1x25 RM | 37.0 | 1048 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1x54.6 RM + 3x70 RM + 2x25 RM | 45.2 | 1150 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1x54.6 RM + 3x70 RM + 3x25 RM | 47.3 | 1250 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1x54.6 RM + 3x95 RM | 37.4 | 1176 | 0.630/0.320 | 13.5 | 240 |
1x54.6 RM + 3x95 RM + 1x16 RM | 41.9 | 1243 | 0.630/0.320/1.910 | 13.5/2.3 | 240/72 |
Other cross-sections can be offered upon request.
Number of Cores x Nominal Cross Section | Overall Diameter | Weight | Minimum Breaking Load | Current Rating |
---|---|---|---|---|
No.×mm^2 | mm | Kg/Km | KN | A |
2x16 RM | 15.0 | 140 | 4.4 | 78 |
2x25 RM | 17.6 | 210 | 7.0 | 105 |
2x35 RM | 19.6 | 270 | 9.8 | 125 |
2x50 RM | 22.8 | 370 | 11.4 | 150 |
2x95 RM | 30.6 | 680 | 15.3 | 230 |
3x25 RM | 19.0 | 310 | 8.8 | 97 |
3x35 RM | 21.1 | 410 | 9.8 | 120 |
3x50 RM | 24.6 | 550 | 11.4 | 140 |
4x16 RM | 18.1 | 290 | 8.8 | 74 |
4x25 RM | 21.2 | 410 | 14.0 | 97 |
4x35 RM | 23.7 | 550 | 19.6 | 120 |
4x50 RM | 27.5 | 740 | 28.0 | 140 |
4x70 RM | 31.9 | 1000 | 39.2 | 175 |
4x95 RM | 36.9 | 1370 | 53.2 | 215 |
4x120 RM | 40.6 | 1690 | 67.2 | 250 |
4x150 RM | 43.9 | 2020 | 84.0 | 280 |
Other cross-sections can be offered upon request.
LV Aerial Bundled Conductor (ABC) Cables
Conductor | Aluminium conductor, round stranded compressed (RM). |
Insulation | XPLE compound, UV-resistant. |
Core Identification | 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm^2 and a minimum of 16 ribs for cores above 50 mm^2. In the case of five core bundles the surface of the protective core should be smooth. |
Rated Voltage | 0.6/1kV |
Test Voltage | 4 Veff kV |
Minimum Laying Temperature | -20°C |
Operating Temperature | -40°C~ +90°C |
Maximum Short-circuit Temperature | 250°C |
Maximum Conductor Temperature | 80°C |
Minimum Bending Radius | 18×OD |
Number of Cores x Nominal Cross Section | Overall Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
---|---|---|---|---|---|
No.×mm^2 | mm | Kg/Km | Ω/Km | KN | A |
1x16 RM | 8.0 | 74 | 1.910 | 2.5 | 72 |
1x25 RM | 9.0 | 106 | 1.200 | 4.0 | 107 |
1x35 RM | 10.5 | 138 | 0.868 | 5.5 | 132 |
1x50 RM | 11.8 | 182 | 0.641 | 8.0 | 165 |
1x70 RM | 13.0 | 252 | 0.443 | 10.7 | 205 |
1x95 RM | 15.4 | 333 | 0.320 | 13.7 | 240 |
1x120 RM | 17.0 | 408 | 0.253 | 18.6 | 290 |
1x150 RM | 19.0 | 502 | 0.206 | 23.2 | 334 |
1x185 RM | 21.0 | 611 | 0.164 | 28.7 | 389 |
1x240 RM | 24.0 | 801 | 0.125 | 37.2 | 467 |
2x16 RM | 15.6 | 147 | 1.910 | 2.5 | 72 |
2x25 RM | 18.0 | 208 | 1.200 | 4.0 | 107 |
2x35 RM | 20.0 | 277 | 0.868 | 5.5 | 132 |
2x50 RM | 23.5 | 361 | 0.641 | 8.0 | 165 |
2x70 RM | 25.4 | 505 | 0.443 | 10.7 | 205 |
2x95 RM | 30.3 | 666 | 0.320 | 13.7 | 240 |
2x150 RM | 38.0 | 1004 | 0.206 | 23.2 | 334 |
4x16 RM | 18.8 | 286 | 1.910 | 2.5 | 72 |
4x25 RM | 21.2 | 430 | 1.200 | 4.0 | 107 |
4x35 RM | 24.1 | 553 | 0.868 | 5.5 | 132 |
4x50 RM | 27.8 | 746 | 0.641 | 8.0 | 165 |
4x70 RM | 31.8 | 1009 | 0.443 | 10.7 | 205 |
4x95 RM | 37.8 | 1332 | 0.320 | 13.7 | 240 |
4x120 RM | 54.4 | 1632 | 0.253 | 18.6 | 290 |
4x50 + 1x25 RM | 31.9 | 814 | 0.641/1.200 | 8.0/4.0 | 165/107 |
4x50 + 1x35 RM | 31.9 | 845 | 0.641/0.868 | 8.5/5.5 | 165/132 |
4x70 + 1x25 RM | 36.0 | 1105 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x70 + 2x25 RM | 40.0 | 1217 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x95 + 1x25 RM | 41.8 | 1438 | 0.320/1.200 | 13.7/4.0 | 240/107 |
4x95 + 2x25 RM | 42.0 | 1544 | 0.320/1.200 | 13.7/4.0 | 240/107 |
4x120 + 1x25 RM | 59.0 | 2050 | 0.253/1.200 | 18.6/4.0 | 290/107 |
Other cross-sections can be offered upon request.
Number of Cores x Nominal Cross Section | Overal Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
---|---|---|---|---|---|
No.×mm^2 | mm | Kg/Km | Ω/Km | KN | A |
1x16+1x25 RM | 15.3 | 160 | 1.910 | 2.5 | 72 |
3x16+1x25 RM | 19.0 | 290 | 1.200 | 4.0 | 107 |
3x25+1x25 RM | 23.2 | 400 | 0.868 | 5.5 | 132 |
3x35+1x25 RM | 25.6 | 500 | 0.641 | 8.0 | 165 |
3x50+1x35 RM | 30.0 | 680 | 0.443 | 10.7 | 205 |
3x70+1x50 RM | 34.9 | 920 | 0.320 | 13.7 | 240 |
3x95+1x70 RM | 40.6 | 1270 | 0.253 | 18.6 | 290 |
3x120+1x70 RM | 44.1 | 1510 | 0.206 | 23.2 | 334 |
3x150+1x95 RM | 49.2 | 1870 | 0.164 | 28.7 | 389 |
3x185+1x120 RM | 54.9 | 2340 | 0.125 | 37.2 | 467 |
3x25+1x25+1x16 RM | 23.2 | 470 | 1.910 | 2.5 | 72 |
3x35+1x25+1x16 RM | 25.6 | 560 | 1.200 | 4.0 | 107 |
3x50+1x35+1x16 RM | 30.0 | 740 | 0.868 | 5.5 | 132 |
3x70+1x50+1x16 RM | 34.9 | 980 | 0.641 | 8.0 | 165 |
3x95+1x70+1x16 RM | 40.6 | 1330 | 0.443 | 10.7 | 205 |
3x120+1x70+1x16 RM | 44.1 | 1580 | 0.320 | 13.7 | 240 |
3x150+1x95+1x16 RM | 49.2 | 1940 | 0.206 | 23.2 | 334 |
3x185+1x120+1x16 RM | 54.9 | 2410 | 1.910 | 2.5 | 72 |
Other cross-sections can be offered upon request.
number of cores x nominal cross section | outer diameter | total weight | max. conductor- resistance | min. breaking load of conductor strand | current rating in the air 1) |
---|---|---|---|---|---|
mm^2 | ca. mm | ca. kg/km | Ohm/km | kN | A |
2x 16 RM | 15.6 | 147 | 1.910 | 2.5 | 72 |
2x 25 RM | 18.0 | 208 | 1.200 | 4.0 | 107 |
2x 35 RM | 20.0 | 277 | 0.868 | 5.5 | 132 |
2x 50 RM | 23.5 | 361 | 0.641 | 8.0 | 165 |
4x 16 RM | 18.8 | 286 | 1.910 | 2.5 | 72 |
4x 25 RM | 21.2 | 430 | 1.200 | 4.0 | 107 |
4x 35 RM | 24.1 | 553 | 0.868 | 5.5 | 132 |
4x 50 RM | 27.8 | 746 | 0.641 | 8.0 | 165 |
4x 70 RM | 31.8 | 1009 | 0.443 | 10.7 | 205 |
4x 95 RM | 37.8 | 1332 | 0.320 | 13.7 | 240 |
4x 120 RM | 54.4 | 1632 | 0.253 | 18.6 | 290 |
4x 35 + 1x 35 RM | 30.0 | 694 | 0.868/0.868 | 5.5/5.5 | 132/132 |
4x 50 + 1x 25 RM | 31.9 | 814 | 0.641/1.200 | 8.0/4.0 | 165/107 |
4x 50 + 1x 35 RM | 31.9 | 845 | 0.641/0.868 | 8.5/5.5 | 165/132 |
4x 70 + 1x 25 RM | 36.0 | 1105 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x 70 + 2x 25 RM | 40.0 | 1217 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x 70 + 1x 35 RM | 36.2 | 1150 | 0.443/0.868 | 10.7/5.5 | 205/132 |
4x 70 + 2x 35 RM | 40.1 | 1289 | 0.443/0.868 | 10.7/5.5 | 205/132 |
4x 95 + 1x 25 RM | 41.8 | 1438 | 0.320/1.200 | 13.7/4.0 | 240/107 |
4x 95 + 1x 35 RM | 41.8 | 1467 | 0.320/0.868 | 13.7/5.5 | 240/132 |
4x 95 + 2x 25 RM | 42.0 | 1544 | 0.320/1.200 | 13.7/4.0 | 240/107 |
Other cross-sections can be offered upon request.
Number of Cores x Nominal Cross Section | Overal Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
---|---|---|---|---|---|
No.×mm^2 | mm | Kg/Km | Ω/Km | KN | A |
2x10 RM | 12.8 | 93 | 3.080 | 1.5 | 38 |
4x10 RM | 15.4 | 183 | 3.080 | 1.5 | 38 |
2x16 RM | 14.8 | 129 | 1.910 | 2.3 | 72 |
2x16 RN + 2x1.5 RE | 14.8 | 176 | 1.910/12.100 | 2.3 | 72 |
4x16 RM | 17.8 | 257 | 1.910 | 2.3 | 72 |
4x16 RN + 2x1.5 RE | 17.8 | 304 | 1.910/12.100 | 2.3 | 72 |
2x25 RM | 18.0 | 202 | 1.200 | 3.8 | 107 |
2x25 RM + 2x1.5 RE | 18.0 | 249 | 1.200/12.100 | 3.8 | 107 |
4x25 RM | 21.7 | 404 | 1.200 | 3.8 | 107 |
4x25 RM + 2x1.5 RE | 21.7 | 451 | 1.200/12.100 | 3.8 | 107 |
2x35 RM | 20.8 | 269 | 0.868 | 5.2 | 132 |
2x35 RM + 2x1.5 RE | 20.8 | 316 | 0.868/12.100 | 5.2 | 132 |
4x35 RM | 25.1 | 539 | 0.868 | 5.2 | 132 |
4x35 RM + 2x1.5 RE | 25.1 | 586 | 0.868/12.100 | 5.2 | 132 |
2x50 RM | 23.4 | 352 | 0.641 | 7.6 | 165 |
2x50 RM + 2x1.5 RE | 23.4 | 399 | 0.641/12.100 | 7.6 | 165 |
1x54.6 RM + 3x25 RM | 21.7 | 507 | 0.630/1.200 | 3.8 | 107 |
1x54.6 RM + 3x25 RM + 1x16 RM | 24.3 | 573 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1x54.6 RM + 3x25 RM + 2x16 RM | 29.7 | 639 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1x54.6 RM + 3x25 RM + 3x16 RM | 31.1 | 705 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1x54.6 RM + 3x35 RM | 25.1 | 615 | 0.630/0.868 | 5.2 | 132 |
1x54.6 RM + 3x35 RM + 1x16 RM | 28.1 | 680 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1x54.6 RM + 3x35 RM + 2x16 RM | 34.3 | 748 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1x54.6 RM + 3x35 RM + 3x16 RM | 35.9 | 814 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1x54.6 RM + 3x35 RM + 1x25 RM | 28.1 | 714 | 0.630/0.868/1.200 | 5.2/3.8 | 132/107 |
1x54.6 RM + 3x50 RM | 28.2 | 741 | 0.630/0.641 | 7.6 | 165 |
1x54.6 RM + 3x50 RM + 1x16 RM | 31.6 | 806 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1x54.6 RM + 3x50 RM + 2x16 RM | 38.6 | 875 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1x54.6 RM + 3x50 RM + 3x16 RM | 40.4 | 940 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1x54.6 RM + 3x50 RM + 1x25 RM | 31.6 | 841 | 0.630/0.641/1.200 | 7.6/3.8 | 165/107 |
1x54.6 RM + 3x70 RM | 33.0 | 950 | 0.630/0.443 | 10.2 | 205 |
1x54.6 RM + 3x70 RM + 1x16 RM | 37.0 | 1014 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1x54.6 RM + 3x70 RM + 2x16 RM | 45.2 | 1083 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1x54.6 RM + 3x70 RM + 3x16 RM | 47.3 | 1148 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1x54.6 RM + 3x70 RM + 1x25 RM | 37.0 | 1048 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1x54.6 RM + 3x70 RM + 2x25 RM | 45.2 | 1150 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1x54.6 RM + 3x70 RM + 3x25 RM | 47.3 | 1250 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1x54.6 RM + 3x95 RM | 37.4 | 1176 | 0.630/0.320 | 13.5 | 240 |
1x54.6 RM + 3x95 RM + 1x16 RM | 41.9 | 1243 | 0.630/0.320/1.910 | 13.5/2.3 | 240/72 |
Other cross-sections can be offered upon request.
Number of Cores x Nominal Cross Section | Overall Diameter | Weight | Minimum Breaking Load | Current Rating |
---|---|---|---|---|
No.×mm^2 | mm | Kg/Km | KN | A |
2x16 RM | 15.0 | 140 | 4.4 | 78 |
2x25 RM | 17.6 | 210 | 7.0 | 105 |
2x35 RM | 19.6 | 270 | 9.8 | 125 |
2x50 RM | 22.8 | 370 | 11.4 | 150 |
2x95 RM | 30.6 | 680 | 15.3 | 230 |
3x25 RM | 19.0 | 310 | 8.8 | 97 |
3x35 RM | 21.1 | 410 | 9.8 | 120 |
3x50 RM | 24.6 | 550 | 11.4 | 140 |
4x16 RM | 18.1 | 290 | 8.8 | 74 |
4x25 RM | 21.2 | 410 | 14.0 | 97 |
4x35 RM | 23.7 | 550 | 19.6 | 120 |
4x50 RM | 27.5 | 740 | 28.0 | 140 |
4x70 RM | 31.9 | 1000 | 39.2 | 175 |
4x95 RM | 36.9 | 1370 | 53.2 | 215 |
4x120 RM | 40.6 | 1690 | 67.2 | 250 |
4x150 RM | 43.9 | 2020 | 84.0 | 280 |
Other cross-sections can be offered upon request.
