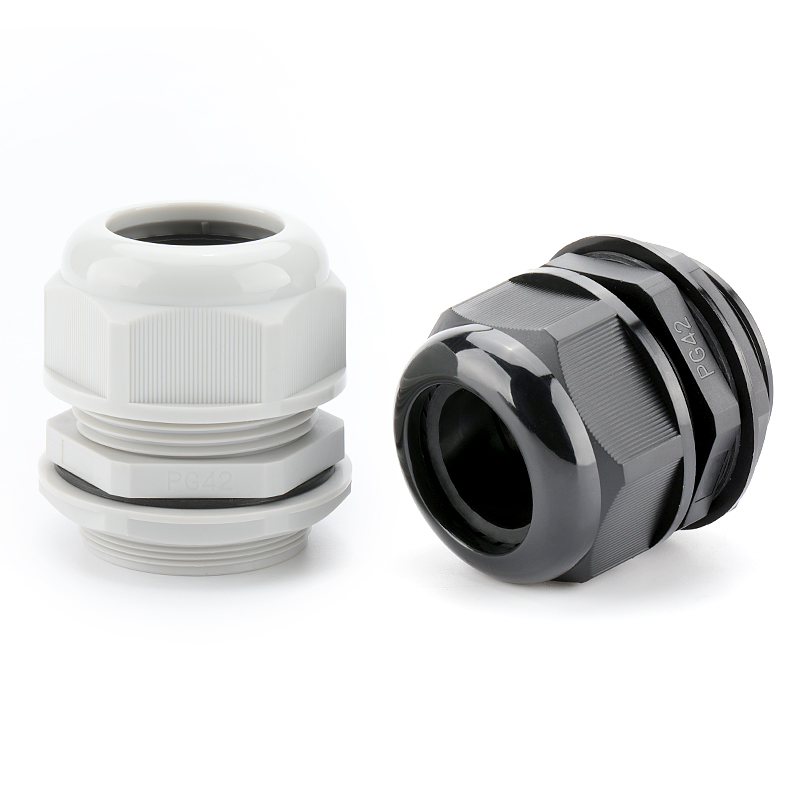

Cable Gland PG Series
General
Material:UL approved Nylon PA66 or Brass plated with nickel
Sealing: NBR,EPDM
IP Rating: IP68 with sealing and O-ring
Working Temperature:-40ºC~100ºC in static state (Instantaneous heat resistance120ºC),-20ºC~80ºC in dynamic state (Instantaneous heat resistance100ºC)
Certification:CE,RoHS,SGS
Color: Black,Grey(nylon natural color),other customized colors
Model | Thread Size | Cable Range (mm) | Thread O.D (mm) | Thread Length (mm) | Spanner Size (mm) |
PG7 | PG7 | 3 ~ 6.5 | 12.5 | 9 | 18/16 |
PG7 | PG7 | 2 ~ 5 | 12.5 | 9 | 18/16 |
PG9 | PG9 | 4 ~ 8 | 15.2 | 9 | 22/19 |
PG9 | PG9 | 2 ~ 6 | 15.2 | 9 | 22/19 |
PG11 | PG11 | 5 ~ 10 | 18.6 | 9 | 24/22 |
PG11 | PG11 | 3 ~ 7 | 18.6 | 9 | 24/22 |
PG13.5 | PG13.5 | 6 ~ 11 | 20.4 | 10 | 27/24 |
PG13.5 | PG13.5 | 5 ~ 9 | 20.4 | 10 | 27/24 |
PG16 | PG16 | 10 ~ 13 | 22.5 | 10 | 30/27 |
PG16 | PG16 | 7 ~ 12 | 22.5 | 10 | 30/27 |
PG19 | PG19 | 12 ~ 15 | 24 | 10 | 30/28 |
PG19 | PG19 | 10 ~ 12 | 24 | 10 | 30/28 |
PG21 | PG21 | 13 ~ 18 | 28.3 | 12 | 35/33 |
PG21 | PG21 | 9 ~ 16 | 28.3 | 12 | 35/33 |
PG25 | PG25 | 16 ~ 21 | 30 | 12 | 37/35 |
PG25 | PG25 | 13 ~ 18 | 30 | 12 | 37/35 |
PG29 | PG29 | 18 ~ 25 | 37 | 12 | 45/42 |
PG29 | PG29 | 13 ~ 20 | 37 | 12 | 45/42 |
PG36 | PG36 | 22 ~ 32 | 47 | 15 | 58/52 |
PG36 | PG36 | 20 ~ 26 | 47 | 15 | 58/52 |
PG42 | PG42 | 32 ~ 38 | 54 | 18 | 62/58 |
PG42 | PG42 | 25 ~ 31 | 54 | 18 | 62/58 |
PG48 | PG48 | 37 ~ 44 | 59.3 | 18 | 70/64 |
PG48 | PG48 | 29 ~ 35 | 59.3 | 18 | 70/64 |
PG63 | PG63 | 42 ~ 50 | 71 | 30 | 83/77 |
PG63 | PG63 | 32 ~ 40 | 71 | 30 | 83/77 |
