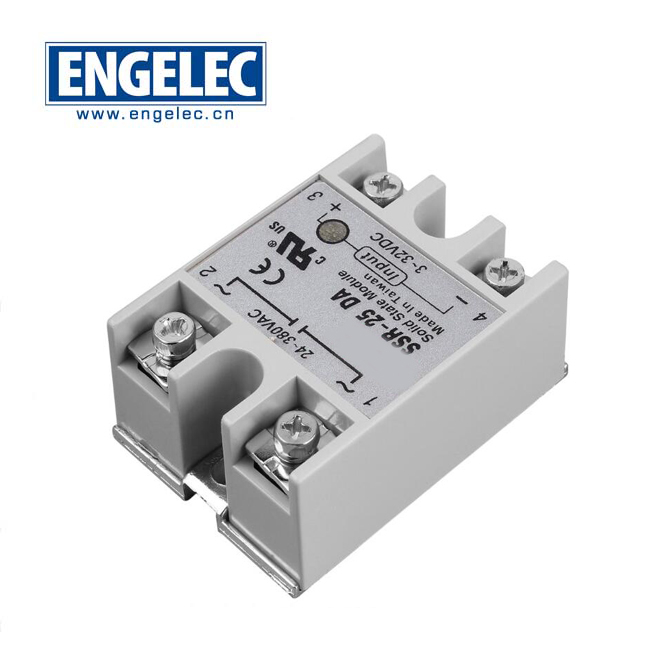

Solid State Relay SSR-DA Series (DC To AC)

Solid State Relay SSR-DA Series (DC To AC) is used for industrial automation installment, AC motor control, Intermediate relay,solenoid valve control, numerical control machinery,external guidance system,computer periphery connection, Illumination,stage lighting control, Electric stove,heating,warm control, street light,signal light,traffic light,Color photo enlargement, film processing equipment,injection machinery,automatic fire control and security system,etc.
  • SSR-DD

  • ENGELEC

  • SSR-DD

Availability:

Solid State Relay SSR-DA Series (DC To AC)


General

1. A bi-directional controlled silicon ouput, zero voltage open, zero current switching;

2. Between input circuit and output circuit have optical isolation;

3. Solation voltage between input and output is 2500V;

4. Output of the power metal-oxide field effect transistor is very low on-resistance;

5. Input signal compatible with TTL logic circuits;

6. Between input circuit and output circuit have Transformer isolation;

7. LED indicated the working state;

8. With security cover.



Main Specification:

Rated load current(A)

Operating voltage(V)

Min.On voltage(V)

Triggrt current 12V

Load Voltage(V)

Peak current(A)

Off leakage current(mA)

On-off time(ms)

Insulation Voltage(V)

Tj(℃)

5

3-32

>2.4

7.5mA(12V)

240/480

130

3.0

10

2500

-30℃~80℃

10

3-32

>2.4

7.5mA(12V)

240/480

135

3.0

10

2500

20

3-32

>2.4

7.5mA(12V)

240/480

270

3.0

10

2500

25

3-32

>2.4

7.5mA(12V)

240/480

275

3.0

10

2500

30

3-32

>2.4

7.5mA(12V)

240/480

300

3.0

10

2500

40

3-32

>2.4

7.5mA(12V)

240/480

410

3.0

10

2500

50

3-32

>2.4

7.5mA(12V)

240/480

500

3.0

10

2500

60

3-32

>2.4

7.5mA(12V)

240/480

635

3.0

10

2500

70

3-32

>2.4

7.5mA(12V)

240/480

700

3.0

10

2500

75

3-32

>2.4

7.5mA(12V)

240/480

850

3.0

10

2500

80

3-32

>2.4

7.5mA(12V)

240/480

900

3.0

10

2500

90

3-32

>2.4

7.5mA(12V)

240/480

990

3.0

10

2500

100

3-32

>2.4

7.5mA(12V)

240/480

1100

3.0

10

2500

120

3-32

>2.4

7.5mA(12V)

240/480

1250

3.0

10

2500
