Push Button Switch, Indicator Light, LA167-EA6 Series

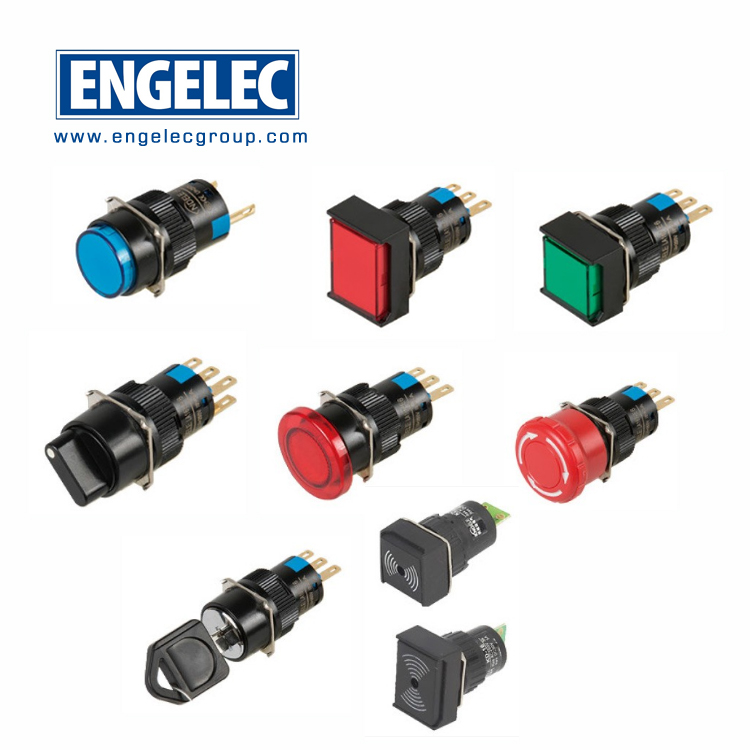

LA167-EA6 series push button switch has three types: round(dia.18mm) and square (18*18mm), rectangle (18*24mm) Including indicator light, push button, push button with light, rotary knob, key rotary, emergency stop, buzzer. The regular mounting hole is 16mm, some of them can make to match in 22mm panel.ach switch can equip 2pcs components.
Protection: IP40 and IP 65 optional. Some can up to IP67
  • LA167-EA6
  • LA167-EA6

Push Button Switch, Indicator Light, LA167-EA6  Series



General:

This series push button switch has three types: round(dia.18mm) and square (18*18mm), rectangle (18*24mm) Including indicator light, push button, push button with light, rotary knob, key rotary, emergency stop, buzzer. The regular mounting hole is 16mm, some of them can make to match in 22mm panel.


Performance:

Reliable, small contact resistance, with high vibration and shock resistance. Comply with IEC60947-5-1, GB14048.5


Structure:

Switch components “quick move” structure, NC, NO, each switch can equip 2pcs components.


Protection:

IP40 and IP 65 optional. Some can up to IP67

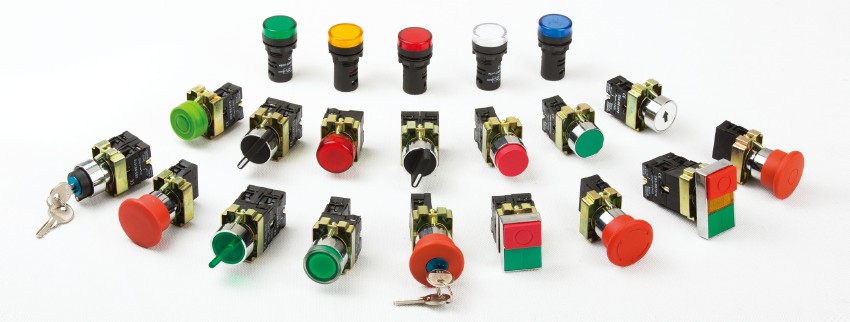

组合

EA6-1

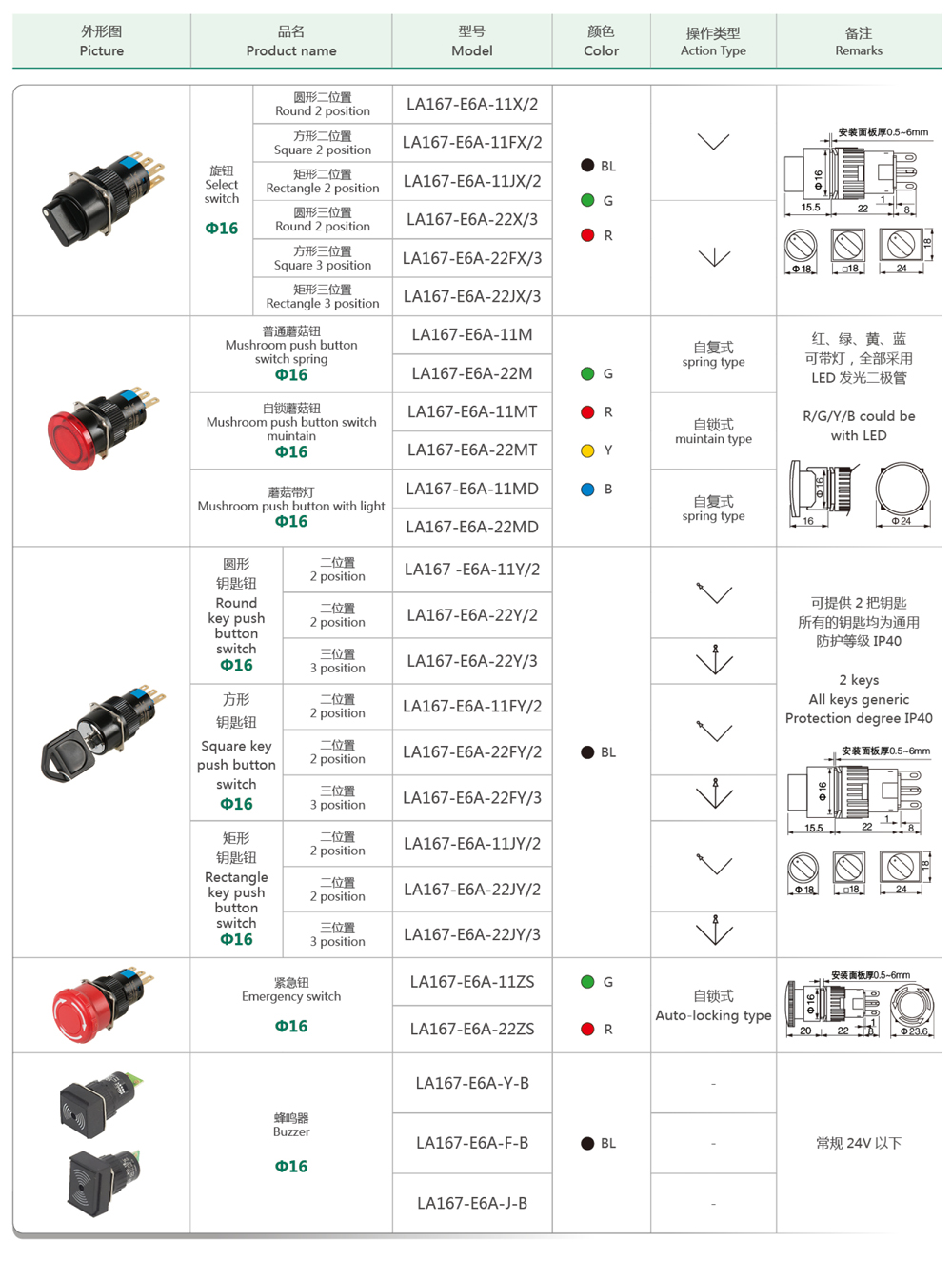

EA6-2
