PG Clamp

  • CAPG-2

  • ENGELEC

  • CAPG-2

Availability:

PG Clamp


General

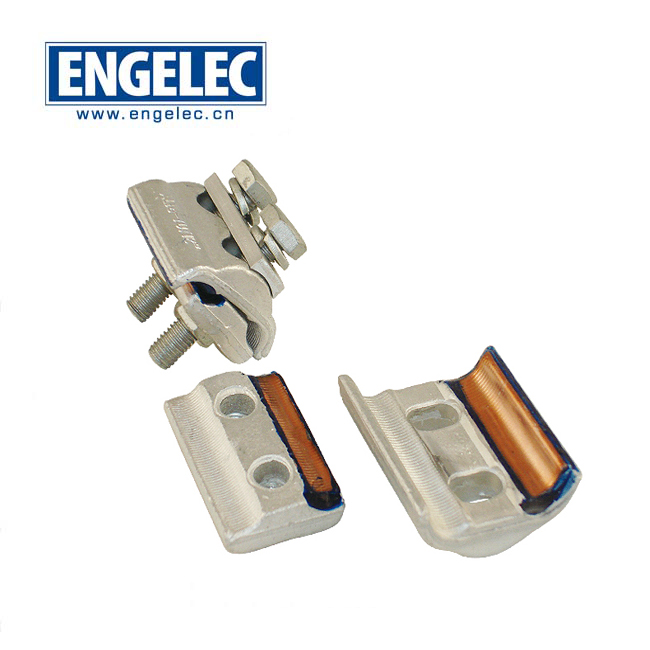

CAPG Cu-Al Parallel Groove Clamp is used for the Non-bearing connection and offset of aluminum stranded wire, aluminum stranded wire, it's used with insulating cover for the effect of protective and insulation.


Model

Conductor Cross-section (mm2)

Bolts

CAPG-A1

Cu 6-50 Al 16-70

1×M8×40

CAPG-A2

Cu 10-95 Al 25-150

1×M8×45

CAPG-B1

Cu 6-50 Al 16-70

2×M8×45

CAPG-B2

Cu 10-95 Al 25-150

2×M8×50

CAPG-B3

Cu 25-185 Al 35-200

2×M10×60

CAPG-C1

Cu 6-50 Al 16-70

3×M8×45

CAPG-C2

Cu 10-95 Al 25-150

3×M8×50

CAPG-C3

Cu 25-185 Al 35-240

3×M10×60

CAPG-C4

Cu 35-240 Al 35-300

3×M10×70
