Junction Box ENRFB-RT

The junction box is suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environment equipment and so on.

  • ENRFB-RT

  • ENRFB-RT

Availability:
Enquiry Add to Basket

Junction Box ENRFB-RT


General Description:

     The junction box is suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environment equipment and so on.


Main Specification:

Body material: ABS;

Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.

Certification: CE, ROHS;

Installation: 1. Inside: There are the installation holes in the base for circuit board or din rail;

                    2. Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.

Outlet hole: Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance.

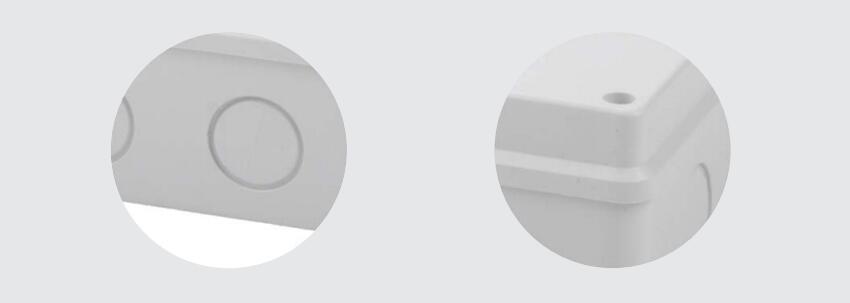

QQ截图20200530210723

Model code Hole Qty. Hole Size IP

G.W.(kgs)

 N.W.(kgs) Qty/Carton  Carton Dimension
ENRFB-RT 50*50 4 25 55 12.9 11.7 300 45.5*37.5*51
ENRFB-RT 80*50 4 25 55 13.1 11.8 240 53*35*62
ENRFB-RT 85*85*50 7 25 55 15.6 14.4 200 45*37*53
ENRFB-RT 100*100*70 7 25 65 13.9 12.5 100 57*46*35
ENRFB-RT 150*110*70 10 25 65 13.6 12.3 60 62*31.5*46.5
ENRFB-RT 150*150*70 8 25 65 15.6 14.3 60 79*31*46
ENRFB-RT 200*100*70 8 25 65 15.6 14.3 60 57*43*42
ENRFB-RT 200*155*80 10 36 65 13.3 12.0 40 64.5*40.5*41
ENRFB-RT 200*200*80 12 36 65 16.0 14.4 40 85*43*40.5
ENRFB-RT 255*200*80 12 36 65 19.8 18.0 40 81*51.5*41
ENRFB-RT 255*200*120 12 36 65 19.8 18.0 30 62*53*62
ENRFB-RT 300*250*120 12 36 65 19.7 17.8 20 61*52*61.5
ENRFB-RT 400*350*120 16 36 65 14.8 13.1 10 72*41*61.5
