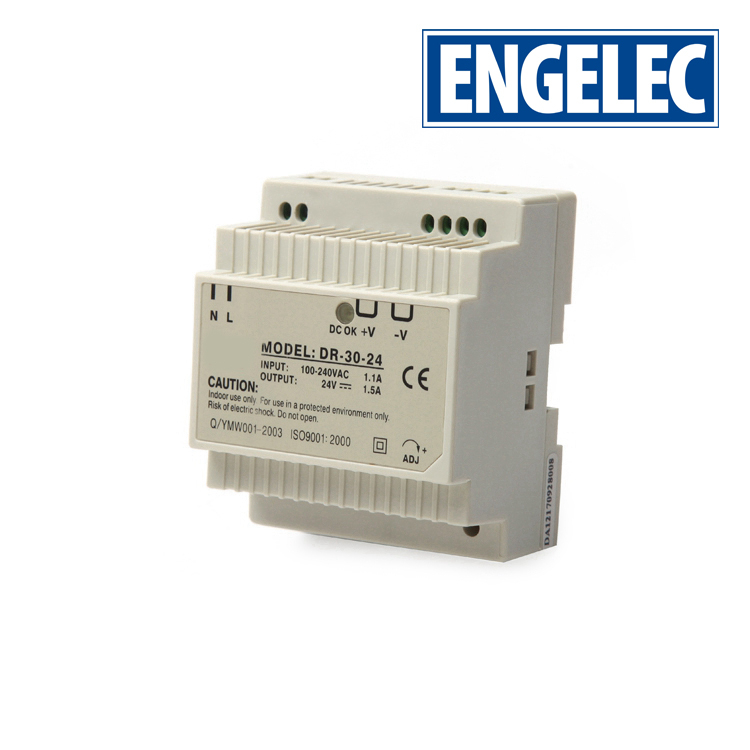

DIN Rail Mounted Power Supply DR-30
Features:
Isolation Class II
Protection: Short circuit, Overload, Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
CE (EMC LVD) RoHS certified
2 years warranty
Specification:
Model | DR-30-12 | DR-30-24 | |
Output | DC Voltage | 12V | 24V |
Rated Current | 2.5A | 1.25A | |
Current Range | 0~2.5A | 0~1.25A | |
Rated Power | 30W | 30W | |
Ripple&Noise | 120 mVp-p | 150 mVp-p | |
Voltage Adj.Range | 10.8-13.6V | 21.6-29.0V | |
Hold Up Time | 100ms/230VAC | ||
Set up,Rise time | 500ms, 20ms / 230VAC | ||
Input | Voltage Range | 200-240 VAC 50~60Hz | |
Efficiency | 85% | 85% | |
Ac Current | 0.27A/230VAC | ||
Inrush Current | Cold Start <20A at 230VAC | ||
Protection | Over Current | 110~160% rated output power | |
Protection Type | Constant current limiting, recovers automatically after fault condition is removed | ||
Over Voltage | Hiccup mode, recovers automatically after fault condition is removed | ||
Environment | Working Temp & Humidity | -20-60°C 20-90% RH | |
Storage Temp & Humidity | -40-80°C 10-90%RH | ||
Safety&EMC | Safety Standards | Design Refer to: EN62368-1:2014 | |
Withstand Voltage | I/P-O/P:3KVAC | ||
Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC | ||
EMC Emission | Compliance to EN55032:2015 , EN61000-3-2 :2014, | ||
EMC Immunity | Compliance to EN55024:2010+A1:2015, EN61000-3-3:2013, | ||
Others | Dimension | 63*93*56mm (W*H*D) | |
Packing | 0.21kg/pc 45pcs/ctn carton size: 32.7*21.6*34cm |
