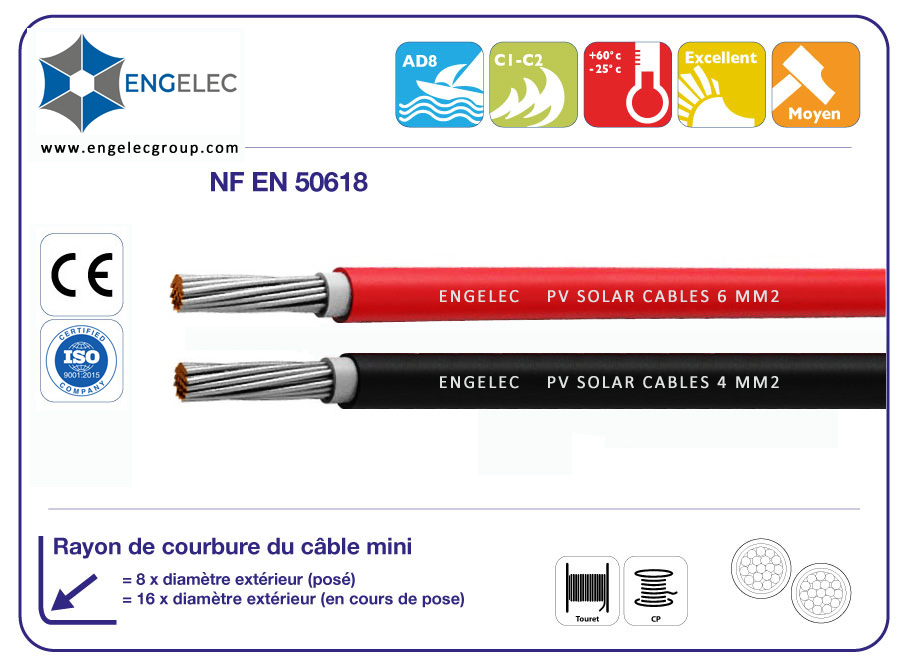

CÂBLE PHOTOVOLTAIQUES PV SOLAR 1 KV

CÂBLE PHOTOVOLTAIQUES PV SOLAR 1 KV de ENGELEC POWER
  • EEPV
  • ENGELEC
  • EEPV
Size:
Availability:

CÂBLE PHOTOVOLTAIQUES PV-SOLR 1/1 KV

NF EN 50618

Utilisation

  • Installations photovoltaïques dans l’industrie du bâtiment publique, privée, industrielle, dans des installations agricoles, d’éclairage et dans les aires de travail en général.

  • Utilisés dans les centrales solaires photovoltaïques, les câbles peuvent être enterrés avec une protection mécanique appropriée.

Description

  1. Âme en cuivre étamé, souple, classe 5 suivant la norme NF  EN 60-228

  2. Isolation : Polyoléfine  (LS0H)*

  3. Gaine extérieure : Polyoléfine (LS0H), couleur : noir, ou noir avec strie rouge

    • Marquage : ingelec solr ( section ) H1Z2Z2-K 1 x section mm² 1/1 KV DC ( 1,8 KV D.C ) EN 50618 N° lot mois / année métrage

Points particuliers

  • Tension assignée : 1/1KV D.C.

  • Tension maximale : 1,2 KV A.C. ; 1,8 KV D.C.

  • Vieillissement de longue durée : 20.000 h à 120 °C

Part CodeSection (mm²)Diamètre indicatif du conducteur (mm)Diamètre externe maxi (mm)Résistance électrique maxi à 20°CMasse approx (Kg/Km)Conditionnement standard T: Touret (m)
EEPV2.52.52.05.88.2142T 500
EEPV442.46.15.0960T 500
EEPV6636.83.3976T 500
EEPV10103.9281.95115T 500
EEPV1616591.24186T 500
