0.6/1kV TORSADE Aluminium CÂBLE PRC ISOLÉ NF C 33-209

Name: 0.6/1kV TORSADE Aluminium CÂBLE PRC ISOLÉ NF C 33-209
Brand: ENGELEC
SKU: 554133948
Rating: 5.0 (92 reviews)

0.6/1kV Câbles Torsade NF C 33-209 Aluminium de ENGELEC POWER

Model:
EETC
Brand:
ENGELEC
Code:
EETC

Size:	3x35+54.6+2x16MM2 3x50+54.6+2x16MM2 3x70+54.6+2x16MM2 3x95+54.6+2x16MM2
Availability:


Enquiry Add to Basket

Product Description

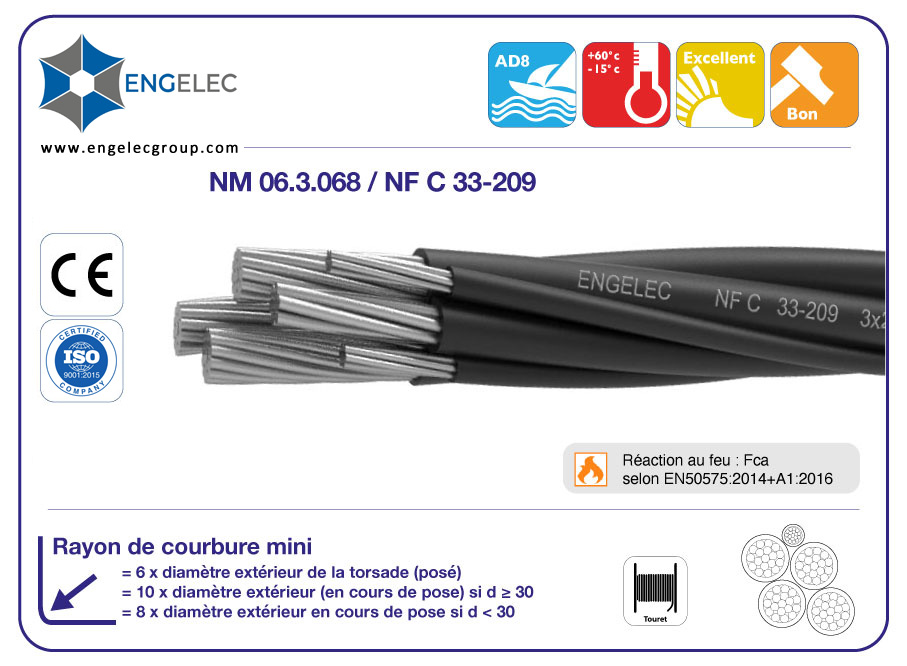

0.6/1KV CÂBLE TORSADÉ ALU ISOLÉ PRC (DISTRIBUTION)

NM 06.3.068 / NF C 33-209

Utilisation

Utilisés en zone rurale (faisceau tendu sur poteaux) ou en zone urbaine (faisceau posé ou fixé sur façade)

Description

Âme du porteur en AGS-classe 2, sections 70 ou 54,6mm2
Âme de la phase en Alu-classe 2
Isolation : PR / XLPE de couleur noire

Part Code	Section (mm²)	Diamètre extérieur approx (mm)	Masse approx (Kg/Km)	Intensité admissible en ampères (1)		Chute de tension V/A/Km cosØ=0.8	Conditionnement standard T : Touret (m)
Part Code	Section (mm²)	Diamètre extérieur approx (mm)	Masse approx (Kg/Km)	A l’air libre 30°C	En terre 20°C	Chute de tension V/A/Km cosØ=0.8	Conditionnement standard T : Touret (m)
EETC2501	3×25+P54.6	24	520	111	–	2.18	T 2000
EETC2511	3×25+P54.6+1×16	25	570	111	83	2.18	T 2000
EETC2521	3×25+P54.6+2×16	25	630	111	83	2.18	T 2000
EETC3501	3×35+P54.6	26	600	138	–	1.62	T 2000
EETC3511	3×35+P54.6+1×16	26	600	138	83	1.62	T 2000
EETC3521	3×35+P54.6+2×16	27	720	138	83	1.62	T 2000
EETC5001	3×35+P54.6	28	720	165	–	1.23	T 2000
EETC5011	3×50+P54.6+1×16	28	780	165	83	1.23	T 2000
EETC5021	3×50+P54.6+2×16	29	850	165	83	1.23	T 2000
EETC7001	3×70+P54.6	31	940	213	–	0.865	T 1500
EETC7011	3×70+P54.6+1×16	32	1021	213	83	0.865	T 1500
EETC7021	3×70+P54.6+2×16	33	1070	213	83	0.865	T 1500
EETC7002	3×70+P70	32	990	213	–	0.865	T 1500
EETC7012	3×70+P70+1×16	33	1060	213	83	0.865	T 1500
EETC7022	3×70+P70+2×16	34	1120	213	83	0.865	T 1500
EETC7031	3×70+P54.6+25	33	1045	213	101	0.90	T 1500
EETC9501	3×95+54.6	35	1200	258	–	0.67	T 1000
EETC9511	3×95+54.6+1×16	35	1260	258	83	0.67	T 1000
EETC9521	3×95+P54.6+2×16	36	1320	258	83	0.67	T 1000
EETC9522	3×95+P70+2×16	36	1360	258	83	0.67	T 1000
EETC15002	3×150+P70	40	1670	344	–	0.445	T 1000
EETC15012	3×150+P70+1×16	41	1740	344	83	0.445	T 1000
EETC15022	3×150+P70+2×16	42	1810	344	83	0.445	T 1000

TORSADE Câbles Aluminium TORSADE Câbles 3x70+54.6+2x16 TORSADE Câbles 3x35+54.6+2x16 TORSADE Câbles 3x70+54.6+1x16 TORSADE Câbles 3x50+54.6+1x16 NFC33209 TORSADE CÂBLE

If you have any enquiry about quotation or cooperation,please feel free to email us at info@engelec.cn or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.

0.6/1kV TORSADE Aluminium CÂBLE PRC ISOLÉ NF C 33-209

0.6/1KV CÂBLE TORSADÉ ALU ISOLÉ PRC (DISTRIBUTION)

NM 06.3.068 / NF C 33-209

0.6/1KV CÂBLE TORSADÉ ALU ISOLÉ PRC (DISTRIBUTION)

NM 06.3.068 / NF C 33-209
